| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| Số mô hình: | JY27467 |
| Số lượng đặt hàng tối thiểu: | 1Piece |
| Giá bán: | negotiable |
| chi tiết đóng gói: | 50pc/ctn |
| Thời gian giao hàng: | 5-8 ngày làm việc |
| Điều khoản thanh toán: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Khả năng cung cấp: | 500 CÁI/TUẦN |
| Tên PRCT: | Bộ kết nối vòng tròn quân sự | Kích thước nhà ở: | 09 |
|---|---|---|---|
| Số pin: | 3 chân | Kích thước liên hệ: | 3-20# |
| Lỗ trên nhà ở: | mạ nickel không dùng điện | Loại gắn kết: | Gắn cáp |
| Phương thức chấm dứt: | Hàn | Liên hệ giới tính: | nam giới |
| Làm nổi bật: | Amphenol Military Circular Connectors,MIL-DTL-38999 Military Circular Connectors,JY27467 Military Circular Connectors |
||
Description for Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors
1. GJB599A series are made according to the same standard with MIL-DTL-38999K series. The difference is that: the basic part number of GJB599A is JY, while MIL-DTL-38999K is MS. GJB599A series is interchangeable with MIL-DLT-38999K series..
2. The applicable protective cap, backshell and square flange cushion details can be found in Page 12～20.
3. If the operating environment requires oil resistance, the connector sealing components should choose fluorinated silicone rubber. When placing orders, plus C1 at the end of the original part number (for example: JY27467T17F35PNC1).
Specification for Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors |
| Model | JY27467 |
| Contact Gender | pin(male) |
| Contacts | 3-20# |
| Body size | 09 |
| Terminal | Solder |
| Housing plating | electroless nickel plating |
| Pin numbers | 3 pins |
| Application | military systems such as aviation, aerospace, weapon, and other electronic equipment systems |
Electrical data & Mechanical data for Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors
| Housing | Aluminum alloy/stainless steel |
| Plating |
B class: olive green cadmium plating E class: stainless steel passive F class: electroness nickel plating |
| Insulator | Thermoset plastic |
| Grommet and seal | Silicon rubber |
| Contact |
Gold-plated copper alloy, crimping, soldering, PCB |
| Endurance | 500 cycles |
| Vibration |
Sinusoid vibration: frequency 10-2000Hz, acceleration: 294m/s2 Random vibration: frequency 100-1000Hz, power spectral density: 1g2/Hz |
| Shock | At 3 ms half sinusoid, peak value |
| Operating temperature |
B class: -65℃～+175℃ E, F class: -65℃～+200℃ |
| Salt spray |
According to method 1001 GJB1217 B class 500h, E class 1000h F class 48h |
| Relative humidity | 98% at 40℃ |
| Operating height | ≤30480m |
Features for Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors
Application for Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors
Military systems such as
Our advantage for Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors

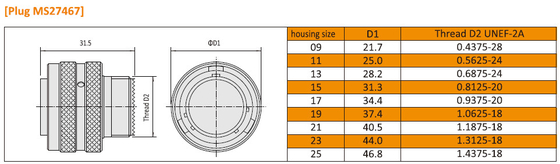

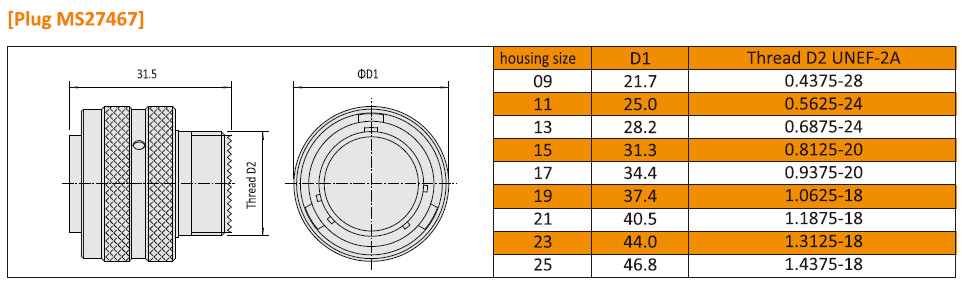

Dimention for Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors
Raymo also do:
