| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | REACH, SGS, RoHS2.0, ISO:9001-2015, CE |
| Số mô hình: | Fng.0b.307.Clad52z |
| Số lượng đặt hàng tối thiểu: | 5 cái/cái |
| Giá bán: | negotiable |
| chi tiết đóng gói: | Túi nhựa & thùng carton |
| Thời gian giao hàng: | 5-7WDS |
| Điều khoản thanh toán: | Liên minh phương Tây, L/C, D/A, D/P, T/T |
| Khả năng cung cấp: | 5000 Miếng/ Tuần |
| Kiểu: | Đầu nối fng lemo/ | Loạt: | đầu nối đẩy kéo tròn |
|---|---|---|---|
| Liên hệ với No.: | 2,3,4,5,6,7,9pins | người cách điện: | PPS/PEEK |
| ứng dụng: | Hệ thống thông tin | Xếp hạng IP: | IP50 |
| Sức chịu đựng: | Kéo đẩy 5000 lần | Loại kết nối: | Hàn/PCB liên hệ thẳng và khuỷu tay |
| Làm nổi bật: | electronics component connectors,cable connector plug |
||
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented circular push pull connector and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers

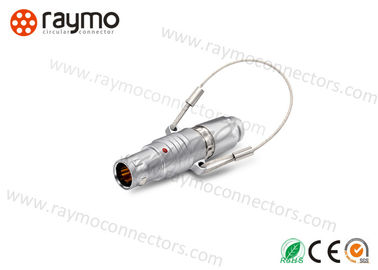

Lemo Push Pull Circular Connectors FNG 2-9 Pin GPS Connector With Wire Rope
|
RAYMO P/N |
Lemo P/N |
P/N |
|
RM-FNG-0BC-306-JS52Z |
FNG.0B.307.CLAD52Z |
W20L0C-P07 |
alternative with LEMO B FNG and L G1series.
| Description |
|
100% compatible with LEMO B series / L series |
|
Lemo FNG 307 7pin GPS connector |
|
multipole types 2 to 32 contacts |
| Female solder contacts,PCB contacts are available with straight and elbow contacts |
|
0B 1B 2B 3B size for your option |
|
high packing density for space savings |
|
5000 times push pull |
|
Technical Characteristics |
|||
|
Temperature Range |
- 65° C, +200° C |
Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
|
Shell Material |
Brass with chrome plated |
Humidity |
up to 95% at 60° C/140F |
|
Shock Resistance |
100 g [ 6 ms] |
Salt spray corrosion test |
>144hr |
|
Climatical Category |
50/175/21 |
Shielding (min) |
> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
|
IP Rating |
IP50 |
Endurance(shell) |
5000 mating cycles |
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application
| Shell size | Contacts no. ( Both with Solder & PCB type ) | ||||||||||||||
| 00 | 2 | 3 | 4 | ||||||||||||
| 0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | ||||||||
| 1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||||
| 2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | |||
| 3B | 3 | 4 | 6 | 8/(6+2) | 9(8+1) | 10 | 12 | 14(13+1) | 14 | 16 | 18 | 21 | 26 | 30 | 32 |
| 4B | 7 | 10 | 24 | |
|||||||||||
