| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | ISO:9001-2015, REACH, SGS, RoHS2.0, CE |
| Số mô hình: | Fhg.0b.306.Clad52z |
| Số lượng đặt hàng tối thiểu: | 5 cái/cái |
| Giá bán: | negotiable |
| chi tiết đóng gói: | Túi nhựa & thùng carton |
| Thời gian giao hàng: | 5-7WDS |
| Điều khoản thanh toán: | Liên minh phương Tây, L/C, D/A, D/P, T/T |
| Khả năng cung cấp: | 5000 Miếng/ Tuần |
| Kích cỡ vỏ: | 00b, 0b, 1b, 2b, 3b, 4b | Kiểu: | Đầu nối tròn Lemo FHG |
|---|---|---|---|
| Liên hệ với No.: | 2,3,4,5,6,7,9pins | người cách điện: | PPS/PEEK |
| ứng dụng: | Hệ thống thông tin | Xếp hạng IP: | IP50 |
| Sức chịu đựng: | Kéo đẩy 5000 lần | Loại kết nối: | Liên hệ hàn |
| Làm nổi bật: | electronics component connectors,electronic cable connectors |
||
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented circular push pull connector and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers

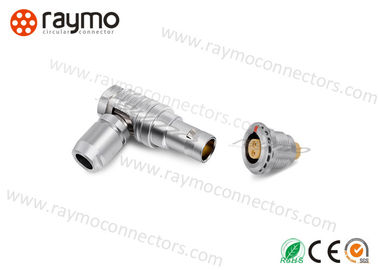

Lemo Push Pull Circular Connectors FGG FHG FNG 1B 6 Pin Plug Lemo Compatible Connectors
|
RAYMO P/N |
Lemo P/N |
P/N |
|
RM-FHG-0BC-306-JS52Z |
FHG.0B.306.CLAD52Z |
W10L0C-P07 |
Description:
|
Technical Characteristics |
|||
|
Temperature Range |
- 65° C, +200° C |
Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
|
Shell Material |
Brass with chrome plated |
Humidity |
up to 95% at 60° C/140F |
|
Shock Resistance |
100 g [ 6 ms] |
Salt spray corrosion test |
>144hr |
|
Climatical Category |
50/175/21 |
Shielding (min) |
> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
|
IP Rating |
IP50 |
Endurance(shell) |
5000 mating cycles |
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application
| Shell size | Contacts no. ( Both with Solder & PCB type ) | ||||||||||||||
| 00 | 2 | 3 | 4 | ||||||||||||
| 0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | ||||||||
| 1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||||
| 2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | |||
| 3B | 3 | 4 | 6 | 8/(6+2) | 9(8+1) | 10 | 12 | 14(13+1) | 14 | 16 | 18 | 21 | 26 | 30 | 32 |
| 4B | 7 | 10 | 24 | |
|||||||||||
Why choose us:
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
