| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | CE, REACH, ISO:9001-2015 |
| Số mô hình: | EPL.00.250.cll |
| Số lượng đặt hàng tối thiểu: | 1 miếng/miếng |
| Giá bán: | negotiable |
| chi tiết đóng gói: | Túi nhựa & thùng carton |
| Thời gian giao hàng: | 5-7 ngày làm việc |
| Điều khoản thanh toán: | T/T, Western Union, D/A, D/P, L/C, Moneygram |
| Khả năng cung cấp: | 5000 Miếng/ Tuần |
| Loạt: | Lemo EPL Elbow (90 °) phích cắm | Người mẫu: | Ổ cắm khuỷu tay cho mạch in |
|---|---|---|---|
| Liên hệ với No.: | 50ohm và 75ohm đồng trục là avaialble | người cách điện: | PPS, PEEK |
| Loại ccpnnector khác: | ERD, EPE, ERA Các loại khác nhau | ||
| Làm nổi bật: | cable elbow connector,cable to cable connector |
||

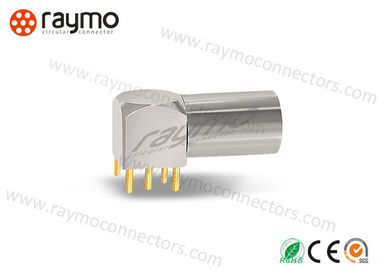

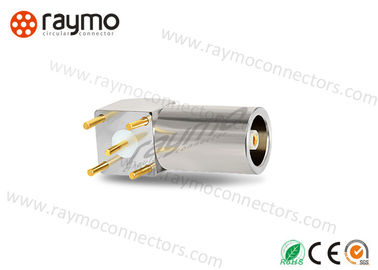

RM-S series Elbow (90°) socket for printed circuit (solder or screw fixing), Lemo EPL Elbow (90°) SOCKET, coaxial contacts
|
Part No. |
FPL.00.250.CLL |
|
Description: |
fixed socket, nut fixing, 00S series, multipole type with 50ohm coaxial contacts, outer shell in chrome-plated brass, PPS insulator |
| Temperature Range | - 55° C, +200° C | Resistance to vibrations | 10-2000 Hz, 15g |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C |
| Shock Resistance | 100 g, 6 ms | Salt spray corrosion test | >96hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP 50 | Endurance(shell) | ≥5000 mating cycles |
|
1 |
can be 100% compatible with original Lemo connector |
|
2 |
Secure high performance push-pull Self-locking system |
|
3 |
polarisation by stepped insert (half-moon) |
|
4 |
360° screening for full EMC shielding |
|
5 |
can plated with white or black chrome |
|
6 |
Certificate:ISO:9001-2015, CE ,RoHS2.0, SGS, Reach |
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED has been specializing in prcing Waterproof Connector Metal Fast Lock for many years, we providing high quality waterproof metal connector Prcts.
• Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
• Can be 100% compatible with original LEMOS • S •FISCHERS• HIROSES • BINDERS •Military 38999
• Series has RM-B, RM-K, RM-S, RM-F,RM-E,RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16, BNC, B680,
B423 , 38999, 26482
• CO, Form A, Form E for customer clearance
• CE, ROHS, ISO:90001-2008, SGS Audited manufacturer
• All the items can work normally after 5000times mating
100% compatible with lemo, , fischer connector
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Help you save at least 50% cost
Fast delivery: 2-15 working days
Cable assembly offer, help you save prction time
Except connectors,we do cable assemble for circular connectors too.Just tell us your need, leave the rest to RAYMO!
Solve the original brand's high cost and long lead time!
