| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | ISO:9001-2015, CE ,RoHS2.0, SGS, REACH |
| Số mô hình: | Fgg.00b.302.clad52z |
| Số lượng đặt hàng tối thiểu: | 5 cái/cái |
| Giá bán: | negotiable |
| chi tiết đóng gói: | Túi nhựa & thùng carton |
| Thời gian giao hàng: | 5-7WDS |
| Điều khoản thanh toán: | Liên minh phương Tây, L/C, D/A, D/P, T/T |
| Khả năng cung cấp: | 5000 Miếng/ Tuần |
| Kiểu: | Đầu nối kéo vòng tròn phích cắm khuỷu tay | Liên hệ với No.: | 2,3,4,5,6,7,9pin có sẵn |
|---|---|---|---|
| người cách điện: | PPS, Peek có sẵn | Xếp hạng IP: | IP50 |
| Sức chịu đựng: | Kéo đẩy 5000 lần | Màu sắc: | Màu trắng bạc |
| Làm nổi bật: | electronics component connectors,cable connector plug |
||

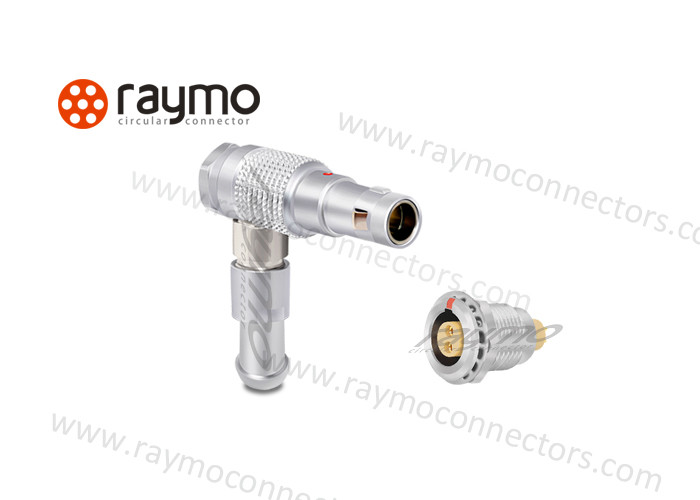

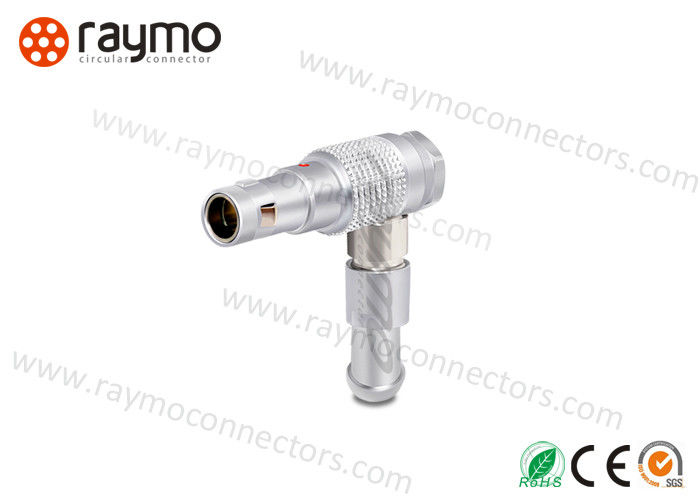

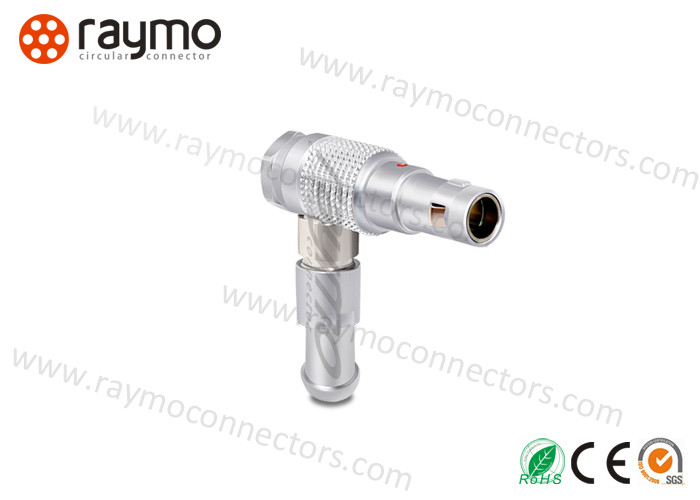

00B circular push pull connector 2 pin FHG multipins plug right angle connector m7 elbow connector
| Size/Series | 0B/1B/2B/3B/4B (Metal (Mechanical Keying)) |
| Shell Style/Model |
Ebow 90 degree plug |
| Keying | 1 key (alpha=0, plug: male contacts, receptacle: female contacts) |
| Housing Material | Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces |
| Configuration | Brass (gold plated) |
| Insulator | PPS |
| Contact Type | Solder |
| Endurance (Shell) | 5000 mating cycles |
| Temp (min) | -40 deg |
| Temp (max) | 125 deg C |
| Humidity (max) | <=95% [at 60 deg C / 140 F] |
| Vibration | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt Spray Corrosion | >144 hr |
| IP Rating | 50 |
Raymo technology offer a full ranfe of ruggrf self-latching push pull connectors used in a vatirety of demanding enviroments, Reasrch, Communications. Broadcast connector,Machines, Defense, Robotic, Aerospace, Public Sector, Information Systems, Motorsoirt, Miscellaneous applications. We can crosse Lemo Cariantions and size
| Shell size | Contacts no. ( Both with Solder & PCB type ) | ||||||||||||||
| RM-00 | 2 | 3 | 4 | ||||||||||||
| RM-0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | ||||||||
| RM-1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||||
| RM-2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | |||
| RM-3B | 3 | 4 | 6 | 8/(6+2) | 9(8+1) | 10 | 12 | 14(13+1) | 14 | 16 | 18 | 21 | 26 | 30 | 32 |
| RM-4B | 7 | 10 | 24 | ||||||||||||
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing circular connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample :
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory
has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
