| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | RoHS2.0, ISO:9001-2015, CE ,, SGS, REACH |
| Số mô hình: | Fgg.0b.309.clld52z |
| Số lượng đặt hàng tối thiểu: | 5 cái/cái |
| Giá bán: | negotiable |
| chi tiết đóng gói: | Túi nhựa & thùng carton |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | Liên minh phương Tây, L/C, D/A, D/P, T/T |
| Khả năng cung cấp: | 5000 Miếng/ Tuần |
| Kiểu: | cắm thẳng | người cách điện: | PPS |
|---|---|---|---|
| Liên hệ với No.: | 2,3,4,5,6,7,9pin có sẵn | Sức chịu đựng: | Kéo đẩy 5000 lần |
| Màu sắc: | Màu trắng bạc | Giới tính: | Liên hệ hàn nữ |
| Làm nổi bật: | electronics component connectors,electronic cable connectors |
||

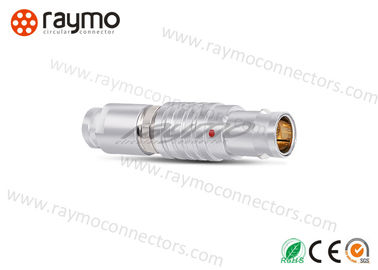

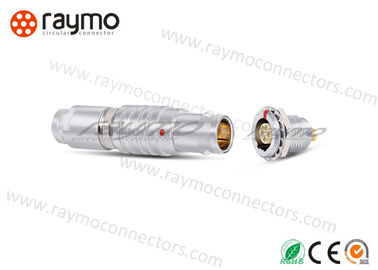

Circular Push Pull Connector FGG 0B 2 3 4 5 6 7 9 Pin Male Connector Sound Devices Zaxcom Denecke Timecode
| Size/Series | 0B/1B/2B/3B/4B (Metal (Mechanical Keying)) |
| Shell Style/Model |
Ebow 90 degree plug |
| Keying | 1 key (alpha=0, plug: male contacts, receptacle: female contacts) |
| Housing Material | Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces |
| Configuration | Brass (gold plated) |
| Insulator | PPS |
| Contact Type | Solder |
| Endurance (Shell) | 5000 mating cycles |
| Temp (min) | -40 deg |
| Temp (max) | 125 deg C |
| Humidity (max) | <=95% [at 60 deg C / 140 F] |
| Vibration | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt Spray Corrosion | >144 hr |
| IP Rating | 50 |
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED has been specializing in prcing Waterproof Connector Metal Fast Lock for many years, we providing high quality waterproof metal connector Prcts. Quality is our priority. Raymo always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001. If you are searching for waterproof connector metal fast lock, please feel free to contact us.
| Shell size | Contacts no. ( Both with Solder & PCB type ) | ||||||||||||||
| RM-00 | 2 | 3 | 4 | ||||||||||||
| RM-0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | ||||||||
| RM-1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||||
| RM-2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | |||
| RM-3B | 3 | 4 | 6 | 8/(6+2) | 9(8+1) | 10 | 12 | 14(13+1) | 14 | 16 | 18 | 21 | 26 | 30 | 32 |
| RM-4B | 7 | 10 | 24 | ||||||||||||
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing circular connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample :
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory
has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
