| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | CE, RoHS2.0, SGS, REACH, ISO9001:2015 |
| Số mô hình: | Fgg.0k.305.clad42z |
| Số lượng đặt hàng tối thiểu: | 1 miếng/miếng |
| Giá bán: | negotiable |
| chi tiết đóng gói: | Túi nhựa & thùng carton |
| Thời gian giao hàng: | 5-7 ngày làm việc |
| Điều khoản thanh toán: | Công Đoàn Phương Tây, L/C, D/A, D/P, T/T, MoneyGram |
| Khả năng cung cấp: | 5000 mảnh / tuần |
| Kiểu: | Đầu nối đẩy nước đẩy tròn | Ghim: | 2, 3, 4, 5, 6, 7, 9 chân |
|---|---|---|---|
| Kích cỡ vỏ: | 0k, kích thước vỏ khác có sẵn | người cách điện: | PPS, Peek cũng có sẵn |
| vòng đời: | Kéo đẩy 5000 lần | Cáp asseble: | Có, theo nhu cầu thực của khách hàng |
| Làm nổi bật: | outdoor electrical connector,waterproof dc connector |
||

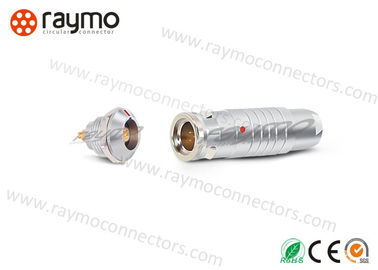

5pin Ip68 Circular Waterproof Connector Plug Socket 0k FGG EGG M14 Cable Connectors
| Size/Series | 0K (Metal (Mechanical Keying)) |
| Shell Style/Model |
Straight plug,cable collet |
| Keying | 1 key (alpha=0, plug: male contacts, receptacle: female contacts) |
| Housing Material | Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces |
| Configuration | Brass (gold plated) |
| Insulator | PPS |
| Contact Type | Solder |
| Endurance (Shell) | 5000 mating cycles |
| Temp (min) | -40 deg |
| Temp (max) | 220 deg C |
| Humidity (max) | <=95% [at 60 deg C / 140 F] |
| Vibration | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt Spray Corrosion | >144 hr |
| IP Rating | 68 |
|
Shell size |
Contacts no. ( Both with Solder & PCB type ) |
||||||||||||||
| RM-0K | 2 | 3 | 4 | 5 | 6 | 7 | 9 | ||||||||
| RM-1K | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||||
| RM-2K | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | |||
| RM-3K | 3 | 4 | 6 | 8/(6+2) | 9(8+1) | 10 | 12 | 14(13+1) | 14 | 16 | 18 | 21 | 26 | 30 | 32 |
| RM-4K | 7 | 10 | 24 | ||||||||||||
RAYMO is a manufactuer that:
Advantages
1. Are your company a professional manufacturer?
Raymo: Yes, we SGS audited manufacturer
2. What is the MOQ?
Raymo: No MOQ limited, depend on customer real needs.
3. Free sample?
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: 3-5 working days for samples, 5-7 working days for mass prction.
5.What is your payment terms?
Raymo: 100% T/T in advance when customer place an order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating, our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
