| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | CE, REACH, ISO:9001-2015, SGS, ROHS |
| Số mô hình: | Ffa.0s.302.Clac32z |
| Số lượng đặt hàng tối thiểu: | 1 miếng/miếng |
| Giá bán: | negotiable |
| chi tiết đóng gói: | Túi nhựa & thùng carton |
| Thời gian giao hàng: | 5-7 ngày làm việc |
| Điều khoản thanh toán: | T/T, Western Union, D/A, D/P, L/C, Moneygram |
| Khả năng cung cấp: | 5000 Miếng/ Tuần |
| Loạt: | Đầu nối nửa mặt trăng | Người mẫu: | Cáp đến đầu nối cáp FFA |
|---|---|---|---|
| Kích cỡ vỏ: | 0s (1s, 2s có sẵn) | Liên hệ với No.: | 2.3.4.5.6 chân |
| người cách điện: | PPS, PEEK | ứng dụng: | Phát tin |
| Làm nổi bật: | cable elbow connector,cable to cable connector |
||

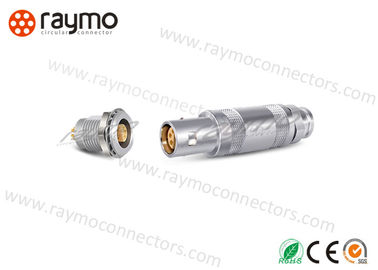

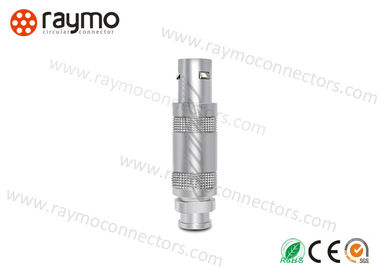

S series Half Moon Connector, FFA PCA cable to cable connector 00S 0S 1S 2S FFA.0S.302.CLAC32Z
|
Part No. |
FFA.00.250.CLAC27 |
|
Description: |
FFA 00 Series circular push pull connector coaxial connector 50ohm, straight plug with cable collet, outer shell in chrome-plated brass, |
|
Main Futures |
|
|
1 |
can be 100% compatible with original Lemo connector |
|
2 |
Half-moon type Secure high performance push-pull Self-locking system |
|
3 |
polarisation by stepped insert (half-moon) |
|
4 |
360° screening for full EMC shielding |
|
5 |
can plated with white or black chrome |
|
6 |
Certificate:ISO:9001-2015, CE ,RoHS2.0, SGS, Reach |
|
Technical Characteristics |
|||
|
Temperature Range |
- 55° C, +200° C |
Resistance to vibrations |
10-2000 Hz, 15g |
|
Shell Material |
Brass with chrome plated |
Humidity |
up to 95% at 60° C |
|
Shock Resistance |
100 g, 6 ms |
Salt spray corrosion test |
>96hr |
|
Climatical Category |
50/175/21 |
Shielding (min) |
> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
|
IP Rating |
IP 50 |
Endurance(shell) |
≥5000 mating cycles |
RAYMO is a manufactuer that:
100% compatible with lemo, , fischer connector
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Help you save at least 50% cost
Fast delivery: 2-15 working days
Cable assembly offer, help you save prction time
Except connectors,we do cable assemble for circular connectors too.
We can make all types of cables as per customers' request. Use any kind of connectors, like Hirose, Cannon, BNC, TNC, D-sub, USB, RJ45, Dtap, JST, Molex, and so on. Just tell us your need, leave the rest to RAYMO!
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
