| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | CE/ ISO9000:2015/ ROHS/ SGS/ REACH |
| Số mô hình: | Ecg.0b.302.cll |
| Số lượng đặt hàng tối thiểu: | 5Piece/mảnh |
| Giá bán: | negotiable |
| chi tiết đóng gói: | Túi nhựa & thùng carton |
| Thời gian giao hàng: | 5-7WDS |
| Điều khoản thanh toán: | Liên minh phương Tây, L/C, D/A, D/P, T/T |
| Khả năng cung cấp: | 5000 Miếng/ Tuần |
| Mô hình vỏ: | Bảng điều khiển gắn loại ECG | Kiểu: | Đẩy đầu nối kéo |
|---|---|---|---|
| Kích cỡ vỏ: | 0B | Liên hệ với No.: | 2Pin |
| Kết nối loại: | Liên hệ hàn với chất cách điện PPS/PEEK | ứng dụng: | Camera màu đỏ |
| Làm nổi bật: | IP50 Circular Push Pull Connectors,0B Circular Push Pull Connectors,D TAP To Lemo Circular Connectors |
||

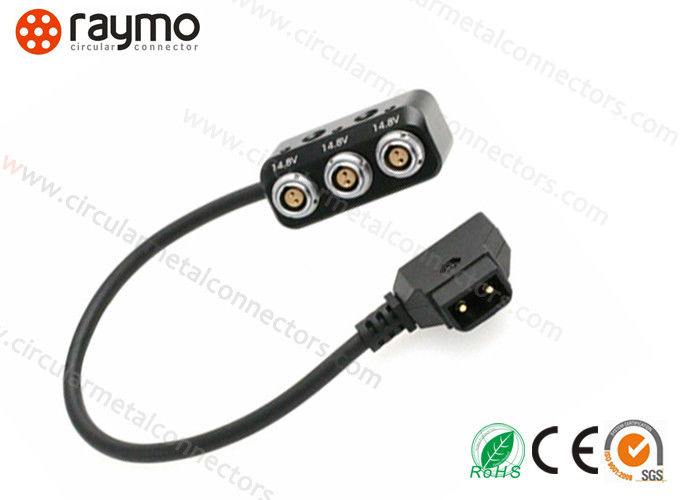

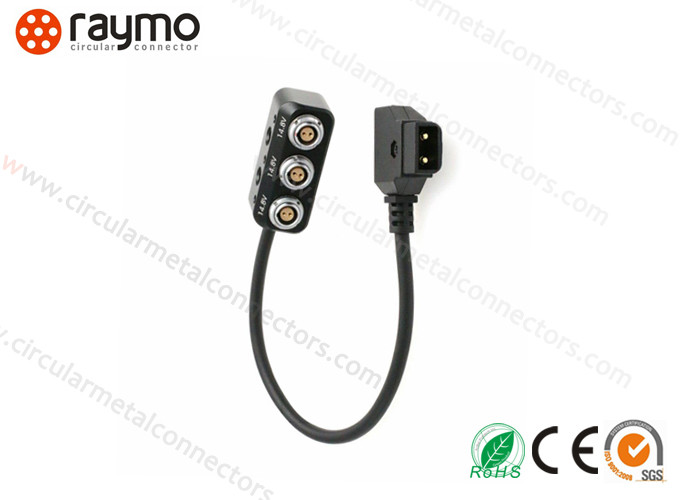

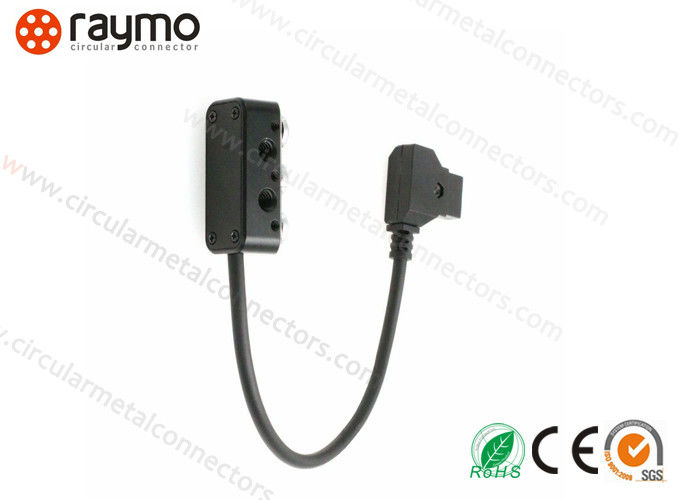

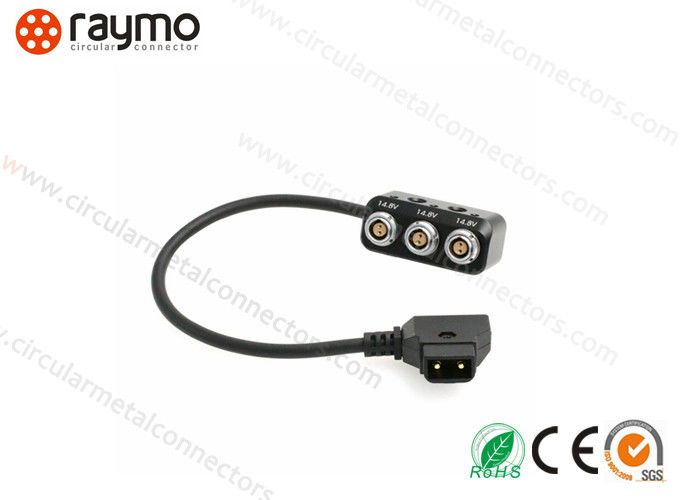

D TAP to lemo push pull connector cable connector for camera device power on cable

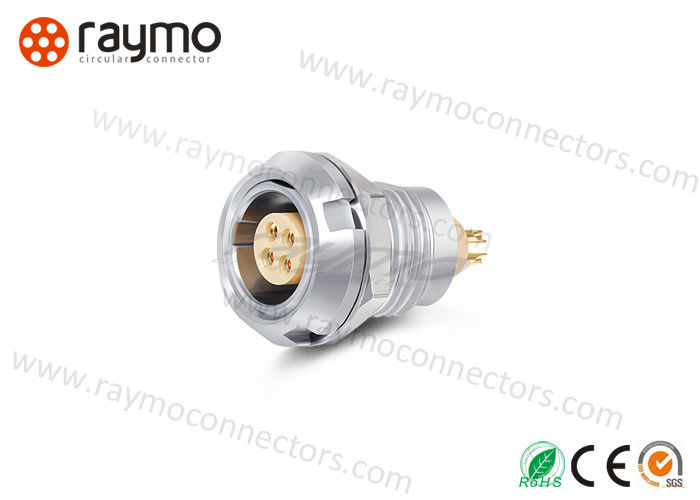

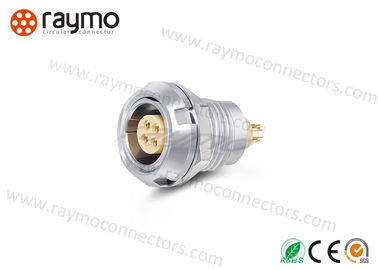

Parts No.:RM-ECG-0BC-302-KS equal to lemo ECG.0B.302.CLL
| Description | |
| 1 | 100% substitute with original LEMO |
| 2 |
Brass with natural chrome plated shell, contact with gold plated |
| 3 | different shell size is available from 00B,0B,1B,2B,3B,4B,5B |
| 4 | can solder with wire to save your time |
| 5 | 360° EMC shield |
| 6 | Available Solder,PCB or right angle PCB contacts |
| 7 | Robust and shock resistant designs |
| Technical Characteristics | |||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >96hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz] > 40 dB [ at 1 GHz] |
| IP Rating | IP50 | Certifications | ISO9001 CE ROHS2.0 SGS |
RAYMO is a manufacturer that:
1. Manufacturing & exporting various metal & plastic circular connectors and cable assembly
2. All prcts can be 100% compatible with original LEMO • FISCHER • • HIROSE • BINDER and provide you alternative solutions of Circular Push Pull Connectors
3. Cable Assembly can be designed according customer real needs
4. All the prcts we got CE, ROHS, SGS,ISO9000 certificate
5. OEM connector and Cable assembly
6. All the items can work normally after 5000 times mating
We can make all types of cables and connectors as per customers' request. Use any kind of connectors, like Hirose, Cannon, BNC, TNC, D-dtap, D-Sub, USB-A, USB-B, RJ45, JST, Molex, and so on. Just tell us your need, leave the rest to RAYMO.
