| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | CE/ ISO9000:2015/ ROHS/ SGS/ REACH |
| Số mô hình: | Fgg to d tap nam |
| Số lượng đặt hàng tối thiểu: | 5Piece/mảnh |
| Giá bán: | negotiable |
| chi tiết đóng gói: | Túi nhựa & thùng carton |
| Thời gian giao hàng: | 5-7WDS |
| Điều khoản thanh toán: | Liên minh phương Tây, L/C, D/A, D/P, T/T |
| Khả năng cung cấp: | 5000 Miếng/ Tuần |
| Mô hình vỏ: | Đầu nối kéo đẩy tròn | Kích cỡ vỏ: | 00b 0b 1b 2b 3b |
|---|---|---|---|
| Liên hệ với No.: | 2 đến 32 chân có sẵn | Kết nối loại: | Liên hệ hàn với chất cách điện PPS/PEEK |
| ứng dụng: | Các hãng phim và phát sóng bên ngoài | MOQ: | 1pcs |
| Làm nổi bật: | Raymo Coil Cable Circular Power Connector,FGG To D TAP Circular Power Connector,3B Circular Cable Connectors |
||

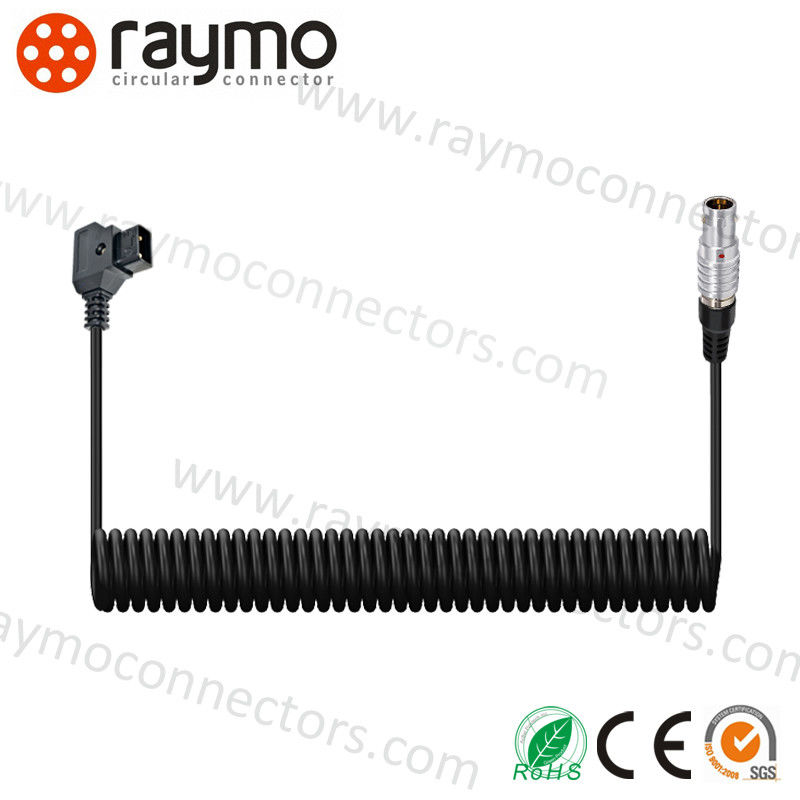

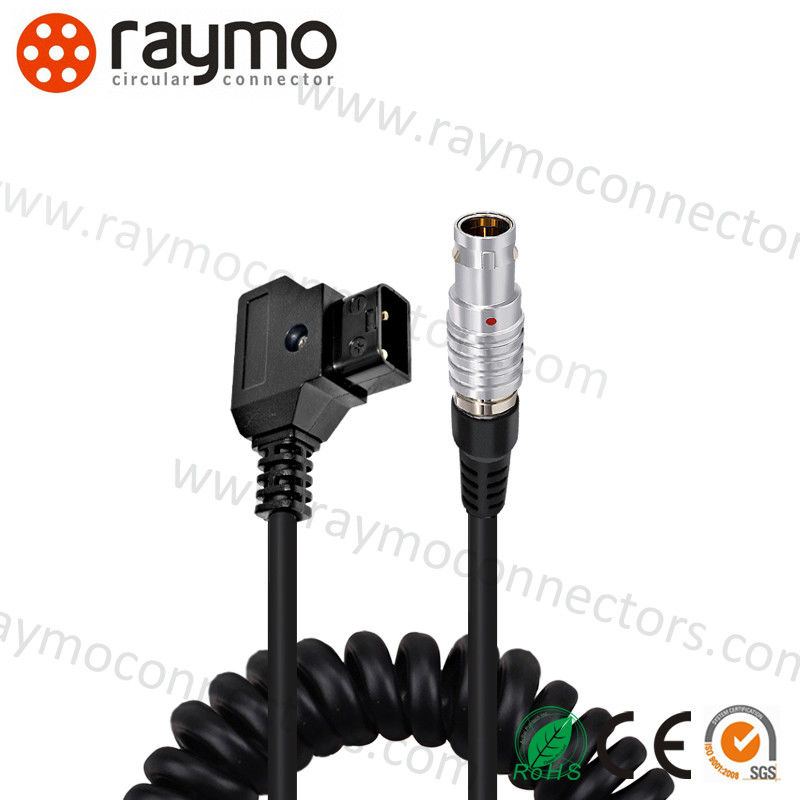

Raymo coil cable circular push pull connector FGG to D TAP for camera use
Raymo FGG 1B can alternative with FGG.1B Lemo connector but cheaper and short lead time. Raymo electronics technology limited is a professional circular push pull connector and cable assemble manufacturer.company have advanced prction equipment, testing equipment, high-end CNC lathe and a professional team, dedicated to provideinnovative solutions & high quality prcts for industrial, telecommunication, military, medical and automotivemarkets.By the end of 2019, the company has successfully passed the ISO9001 (2015) quality system certification,ROHS certification, CE certification, Reach certification and other authoritative certification.
We can make all types of cables and connectors as per customers' request. Use any kind of connectors, like Hirose, Cannon, BNC, TNC, D-dtap, D-Sub, USB-A, USB-B, RJ45, JST, Molex, and so on. Just tell us your need, leave the rest to RAYMO.
1.Description
2.Technical Characteristics
| Temperature Range | - 65° C, +200° C |
| Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt spray corrosion test | >96hr |
| IP Rating | IP 50 |
| Life Cycles | 5000 times |
| Certifications | ISO9001 CE ROHS2.0 SGS |
3.Construction and Size
FHG cable connectors with differnt shell size and contacts
6.Why choose us
6.DIY cable assembly process:
Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
Screw the collet nut tightly Hitch the sleeve to the corresponding step of collet nut.
Price, lead time, drawing, datasheet get now!
