| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | Raymo |
| Chứng nhận: | CE/ROHS/REACH/SGS/ISO9001 |
| Số mô hình: | RM-FS2.0L0S.P09JS50Z |
| Số lượng đặt hàng tối thiểu: | 1pcs |
| Giá bán: | 4.5-6.8 |
| chi tiết đóng gói: | Túi PE + Thùng |
| Thời gian giao hàng: | 3-5 ngày làm việc |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Western Union, Moneygram |
| Khả năng cung cấp: | 500pcs/5-7 ngày làm việc |
| Kiểu: | Đầu nối kéo đẩy tròn | Kích cỡ vỏ: | 0l 1l |
|---|---|---|---|
| Liên lạc: | 9 mã PIN | Màu sắc: | Mạ crôm đen |
| Giới tính: | Liên hệ hàn nam | ứng dụng: | Máy ảnh mini Arrialexa |
| Chèn vật liệu/chất cách điện: | PPS/PEEK | Xếp hạng IP: | IP68 |
| Làm nổi bật: | PPS Circular Push Pull Connector,FS2 Circular Push Pull Connector,Arri Camera Circular Power Connector |
||

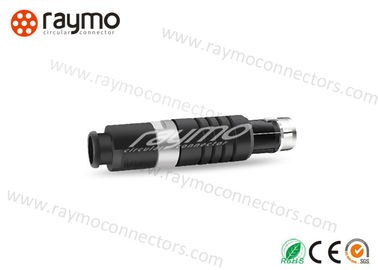

FS2 FG8 0B 1B Audio Video Arri Camera Waterproof Circular Push Pull Connector
MINI-SNAP SERIES L
The MINI-SNAP Series L is keyed by pin and groove. These Push-Pull circular connectors can be configured
in many different ways: a different variety of sizes and contact inserts are available.
Description:
RM-FS2.0L0S.P09JS50Z
Push pull circular cable connectors, 9 pins male solder contacts, male solder contacts, shell in black color,
50 cable collet for arri alexa mini camera
RM-L series circular push pull connectors main features:
1. Security of the Push-Pull self-latching system
2. Up to 4 sizes and 3 termination types
3.Choice of numerous plugs and receptacles
4. 360° screening for full EMC shielding
5. Multi-pole types 2 to 26 contacts
6. High packing density for space savings
7. IP6 ranking waterproof function
Technical characteristics:
1. Endurance:> 5000 mating cycles
2. Humidity :Up to 95% at 60 ℃
3. Temperature range:-40 ℃, +250 ℃
4. Resistance to vibration :15 g[10 HZ-2000HZ]
5. Shock resistance:100 g ,6 MS
6. Salt spray corrosion test :> 96h
RM-L series Shell size and Contacts of circular push pull connector
|
RM-0L |
2pins 3pins 4pins 5pins 6pins 7pins 9pins |
|
RM-1L |
2pins 3pins 4pins 5pins 6pins 7pins 8pins pins 10pins 12pins 14pins 16 |
Industry Application:
It is widely used on all kinds of medical equipments, specially for Studios and outside broadcasting, TV
and motion picture, HD and SD cameras , Remote camera control and military application
