| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | SGS, REACH, RoHS2.0, ISO:9001-2015, CE |
| Số mô hình: | ECG 2 PIN ĐẾN DTAP MALE |
| Số lượng đặt hàng tối thiểu: | 5 cái/cái |
| Giá bán: | 12USD~20USD/PCS |
| chi tiết đóng gói: | Túi nhựa & thùng carton |
| Thời gian giao hàng: | 5-7WDS |
| Điều khoản thanh toán: | Liên minh phương Tây, L/C, D/A, D/P, T/T |
| Khả năng cung cấp: | 5000 Miếng/ Tuần |
| Sự miêu tả: | Lắp ráp cáp kết nối kéo tròn tròn | Kích cỡ vỏ: | 0b ECG 3 chân |
|---|---|---|---|
| Chiều dài cáp: | 0,5 mét (theo nhu cầu thực của khách hàng) | Màu vỏ: | Đồng thau mạ crôm tự nhiên |
| Xếp hạng IP: | IP50 | ứng dụng: | Máy ảnh tốc độ cao |
| vòng đời: | Kéo đẩy 5000 lần | Giấy chứng nhận: | CE/ROHS/Reach/ISO9001/SGS |
| Làm nổi bật: | IP50 Female Push Pull Connector,0B ECG Female Push Pull Connector,Hub Adapter Splitter Circular Connectors |
||

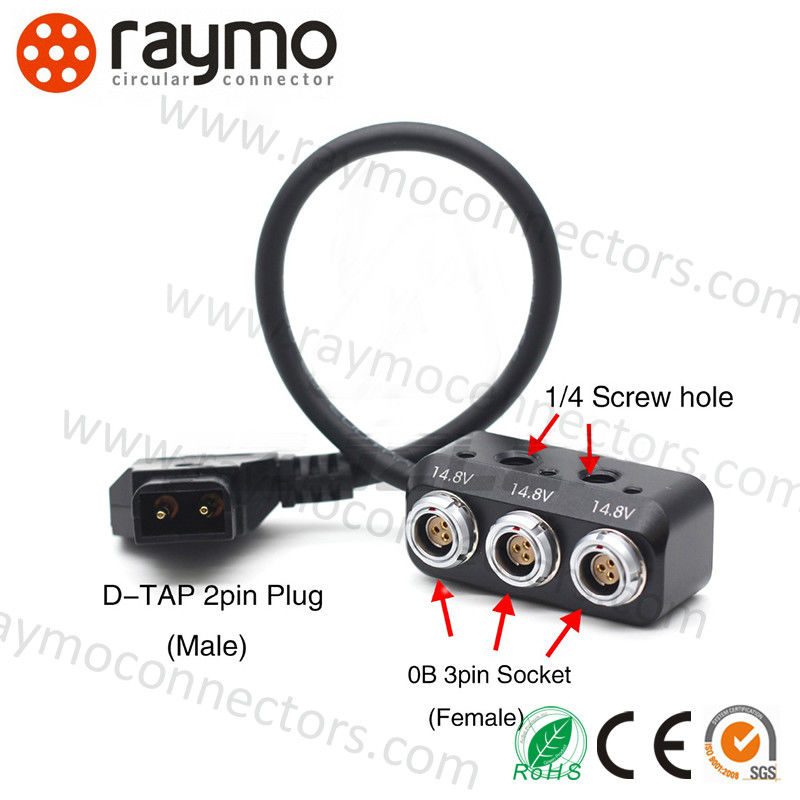

D-Tap Male To 0b 2 Pin Female Push Pull Connector Hub Adapter Splitter For Arri/Red/
Sony Camera Power Supply
RM-ECG-0BC-303-KS + D TAP MALE
ECG panel circular push pull connector to D TAP male with three way splitter. Cable length is according
customer real needs, 0.5m, 1m, 2m. We can make all types of cables as per customers' request.
1. Push pull locking metal connector, cable to cable connector, free socket, inline connector
2. can be 100% compatible with original connector
3. can be with different degree , such us 30, 45, 60, 90, 135
4. can plated with white or black chrome
5. 360 angle screening for full EMC shielding
6. ISO:9001-2015 CE RoHS2.0 SGS REACH
|
Temperature Range |
- 40° C, +125° C |
Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
|
Shell Material |
Brass with chrome plated |
Humidity |
up to 95% at 60° C/140F |
|
Shock Resistance |
100 g [ 6 ms] |
Salt spray corrosion test |
>96hr |
|
Climatical Category |
50/175/21 |
Shielding (min) |
> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
|
IP Rating |
IP68 |
Endurance(shell) |
5000 mating cycles |
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED has been specializing in prcing Waterproof
Connector Metal Fast Lock for many years, we providing high quality waterproof metal connector Prcts.
Quality is our priority. Raymo always attach great importance to quality controlling from the very beginning to
the very end. Our factory has gained ISO9001, If you are searching for waterproof connector metal fast lock,
please feel free to contact us.
Q1. Can I have a sample ?
Yes, we welcome sample order to test and check quality. Some samples are free, and some samples should be
paid in advance and the cost will be refund after further order.
Q2. What about the prction lead time?
We have stock, fast delivery below 5,000 pieces.
Q3. How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx,TNT,SF or EMS. It usually takes 3-5 days to arrive.
Q4. Is it OEM available?
Yes. We have rich experience and good ability to put your design and idea into real prct, normally it take
about 20 to 30 days for new prct from mold design to final prction.
