| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | SGS, REACH, RoHS2.0, ISO:9001-2015, CE |
| Số mô hình: | Fhg.0bc.305..JS52Z |
| Số lượng đặt hàng tối thiểu: | 5 cái/cái |
| Giá bán: | 12USD~20USD/PCS |
| chi tiết đóng gói: | Túi nhựa & thùng carton |
| Thời gian giao hàng: | 5-7WDS |
| Điều khoản thanh toán: | Liên minh phương Tây, L/C, D/A, D/P, T/T |
| Khả năng cung cấp: | 5000 Miếng/ Tuần |
| Sự miêu tả: | Đầu nối kéo đẩy tròn | Chiều dài cáp: | 0,25 mét |
|---|---|---|---|
| Màu vỏ: | Đồng thau mạ crôm tự nhiên | Xếp hạng IP: | IP50 |
| ứng dụng: | Máy ảnh tốc độ cao | vòng đời: | Kéo đẩy 5000 lần |
| Giấy chứng nhận: | CE/ROHS/Reach/ISO9001/SGS | Thời gian dẫn đầu: | 3-5 ngày làm việc |
| Làm nổi bật: | Circular Push Pull Connector 3B,FHG Circular Push Pull Connector,0.5m Right Angle Cable Connector |
||
FHG 0B 1B 2B 3B RIGHT ANGLE CABLE CONNECTOR CIRCULAR PUSH PULL CONNECTOR

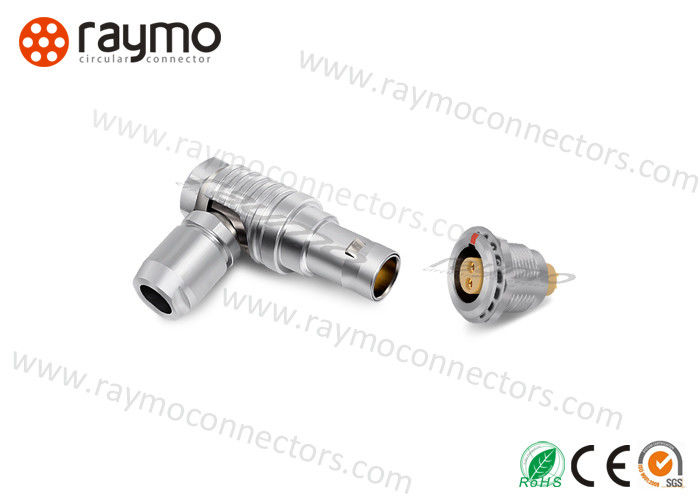

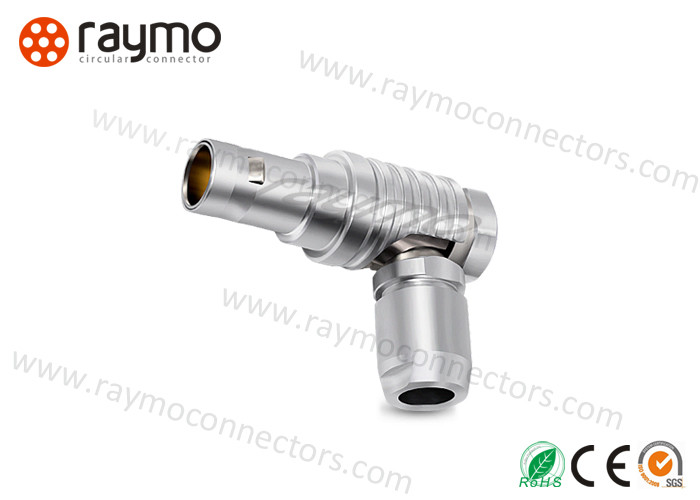

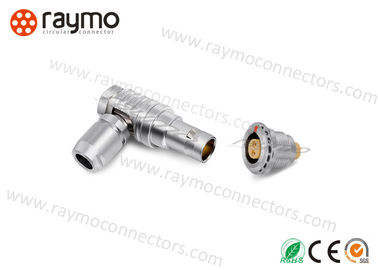

FHG.305 right angle cable connectors, shell in chrome plated in natural color
5 pins male contacts, 52 cable collect to meet with different cable diameter
Except right angle cable connectors, we can do it with straight circular push pull connectors too.
1. Push pull locking metal connector, cable to cable connector, free socket, inline connector
2. can be 100% compatible with original connector
3. can plated with white or black chrome
4. 360 angle screening for full EMC shielding
5. ISO:9001-2015 CE RoHS2.0 SGS REACH
6. All diferent shell size from 00 to 4B are available
7. 2 pins to 64 pins are available
Push-pull Self-locking Metal Connector
| Mechanical Shock |
100g-6ms
|
| Connector Type |
Cable connector, male contacts
|
| Number of Positions |
5 pins
|
| Termination |
Solder
|
| Fastening type |
Push Pull
|
| Key code |
G(A…M&R)
|
| Shell Color |
Natural
|
| Contact Material |
Brass
|
| Contact Finish-mating |
Gold
|
| Contact Color |
Gold
|
| Insert material/insulator |
PPS/PEEK
|
|
Temperature Range |
- 40° C, +125° C |
Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
|
Shell Material |
Brass with chrome plated |
Humidity |
up to 95% at 60° C/140F |
|
Shock Resistance |
100 g [ 6 ms] |
Salt spray corrosion test |
>96hr |
|
Climatical Category |
50/175/21 |
Shielding (min) |
> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
|
IP Rating |
IP50 |
Endurance(shell) |
5000 mating cycles |
|
Standard B series;
|
|
Waterproof/watertight K series;
|
|
Half-moon insert S series;
|
|
Standard F series;
|
|
Plastic P series.
|
|
Hirose/ / binder/ Weipu/ BNC connector.
|
|
Connector with cable assembly.
|
Q1. Can I have a sample ?
Yes, we welcome sample order to test and check quality. Some samples are free, and some samples should be
paid in advance and the cost will be refund after further order.
Q2. What about the prction lead time?
We have stock, fast delivery below 5,000 pieces.
Q3. How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx,TNT,SF or EMS. It usually takes 3-5 days to arrive.
Q4. Is it OEM available?
Yes. We have rich experience and good ability to put your design and idea into real prct, normally it take
about 20 to 30 days for new prct from mold design to final prction.
