| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| Số mô hình: | RM-M8 |
| Số lượng đặt hàng tối thiểu: | 1Piece |
| Giá bán: | negotiable |
| chi tiết đóng gói: | 100 cái/thùng |
| Thời gian giao hàng: | 5-8 ngày làm việc |
| Điều khoản thanh toán: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Khả năng cung cấp: | 5000pcs/tuần |
| Tên PRCT: | Đầu nối sửa sợi trục vít | Số lượng liên hệ: | 2 chân |
|---|---|---|---|
| Loại gắn kết: | Gắn cáp | Phương thức chấm dứt: | Hàn |
| Liên hệ giới tính: | nam giới | Xếp hạng IP: | IP67 |
| Xếp hạng hiện tại: | 3A | Định hướng cơ thể: | Thẳng |
| Làm nổi bật: | IP67 Waterproof Circular Connector,TPU Molded Waterproof Circular Connector,Waterproof M8 Sensor Connector |
||

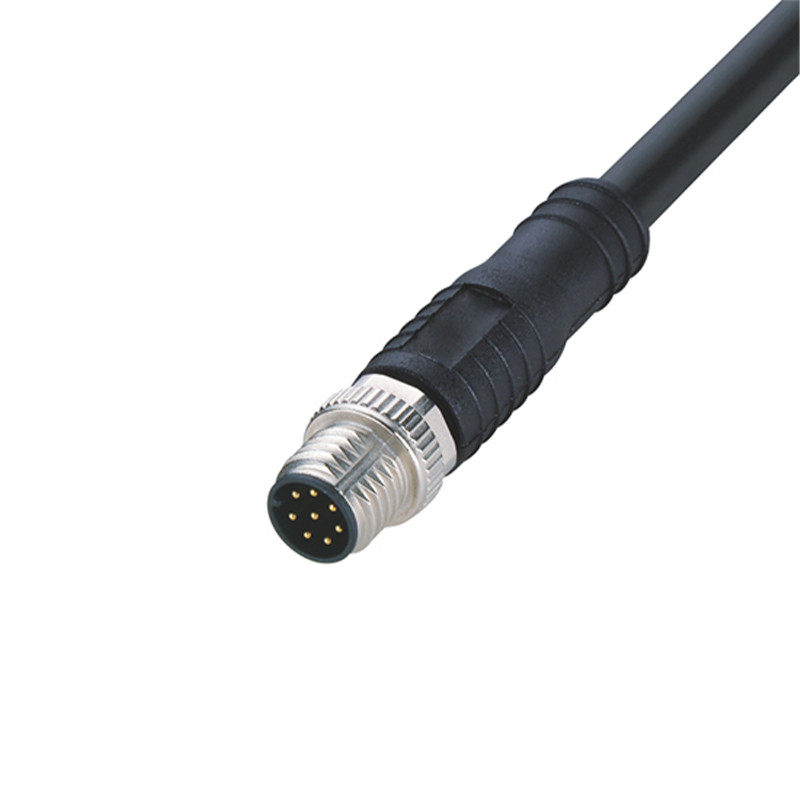

Description for IP67 Waterproof Binder M8 Sensor Connector
The M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Available in a shielded form and rated to IP67, these connectors are ideally suited for inductrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacle supplied with a solder-up for wire connecting or with PCB panel solder contacts. A field attachable/mountable connector is also available.
Features for IP67 Waterproof Binder M8 Sensor Connector
Specification for IP67 Waterproof Binder M8 Sensor Connector
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Circular screw waterproof connectors |
| Connector size | M5,M8,M12,M16 |
| Contact Gender | Pin(Male), pole(female) |
| Number of contacts | 3-8 contacts |
| Mounting Style | Straight/Elbow |
| Termination Style | Solder/print/PCB |
| Current Rating | 1.5-3A |
| IP Rating | IP67 |
| Application | Sensors, Actuators |
| Shell Material | (1) Connector material: Plastic PA+GF (2) M8 male to female molded cable (3) Contacts:Brass, Gold Plated (4) Cable material: PVC/TPU |
| Wire Gauge | 24-28AWG |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -25°C, +80°C |

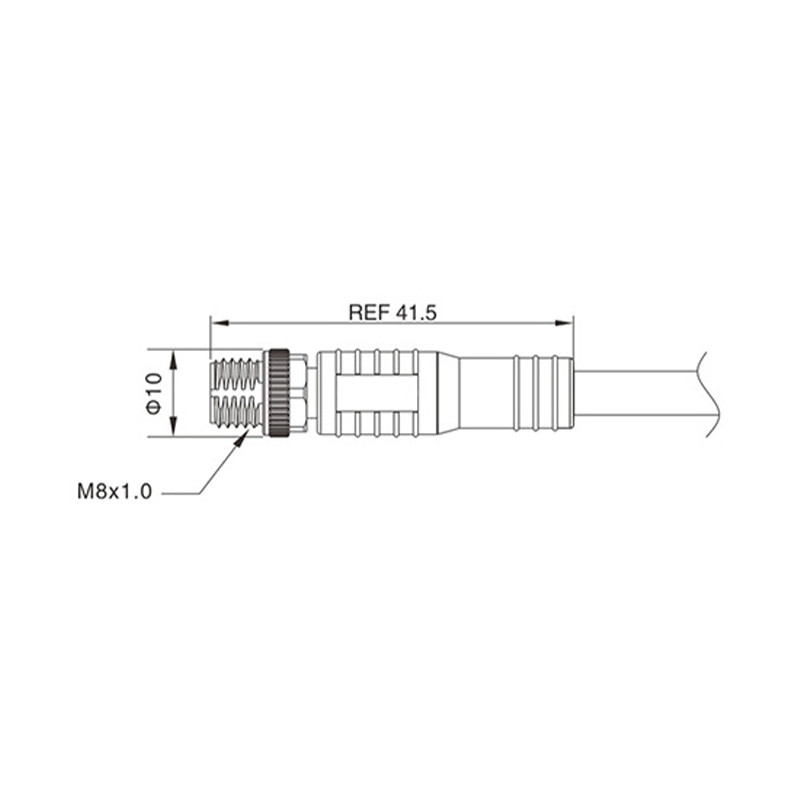

Electrical data & Mechanical data for IP67 Waterproof Binder M8 Sensor Connector
| Contacts | Rated current | Voltage | Wire gauge/size | ||
| A/C | D/C | mm2 | AWG | ||
| 3 pins | 3A | 50V | 60V | 0.25 | 24 |
| 4 pins | 3A | 50V | 60V | 0.25 | 24 |
| 5 pins | 3A | 30V | 30V | 0.25 | 24 |
| 6 pins | 1.5A | 30V | 30V | 0.14 | 26 |
| 8 pins | 1.5A | 30V | 30V | 0.14 | 26 |
Application for IP67 Waterproof Binder M8 Sensor Connector
Our advantage for IP67 Waterproof Binder M8 Sensor Connector
IP67 Waterproof Binder M8 Sensor Connector
