| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| Số mô hình: | RM-M8-3P |
| Số lượng đặt hàng tối thiểu: | 1Piece |
| Giá bán: | negotiable |
| chi tiết đóng gói: | 100 cái/thùng |
| Thời gian giao hàng: | 5-8 ngày làm việc |
| Điều khoản thanh toán: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Khả năng cung cấp: | 5000pcs/tuần |
| Tên PRCT: | Đầu nối không thấm nước M8 | Số lượng liên hệ: | 3 chân |
|---|---|---|---|
| Loại gắn kết: | Gắn cáp | Phương thức chấm dứt: | Hàn |
| Liên hệ giới tính: | nam giới | Xếp hạng IP: | IP67 |
| Xếp hạng hiện tại: | 3A | Định hướng cơ thể: | Góc vuông/khuỷu tay |
| Làm nổi bật: | Actuators M8 Right Angle Connector,Sensor M8 Right Angle Connector,Elbow Plug M8 3 Pin Connector |
||

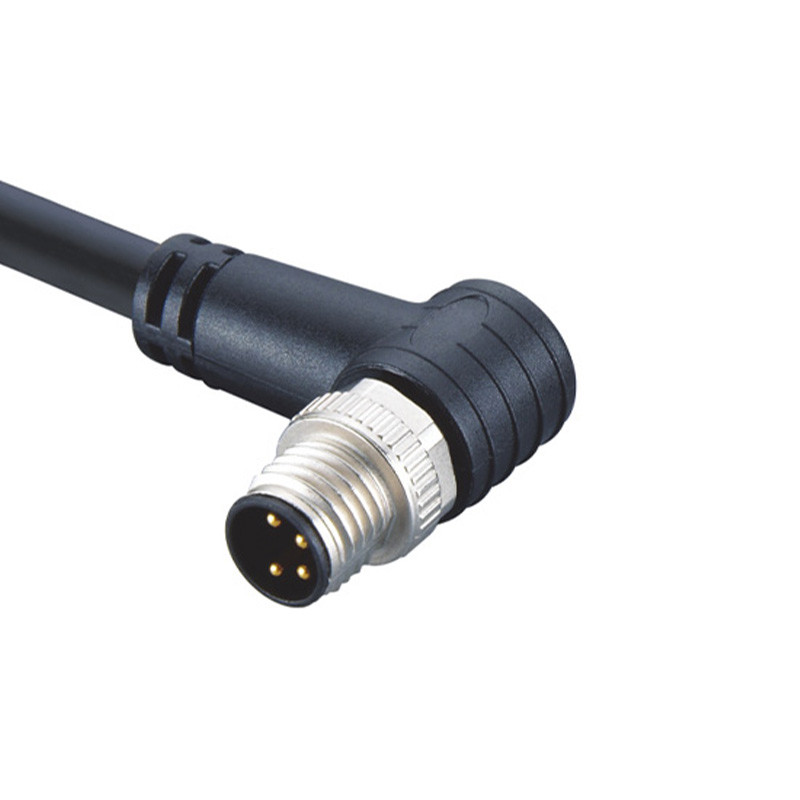

Description for mini circular right angle elbow plug M8 3 pins connector for Sensor
The M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Available in a shielded form and rated to IP67, these connectors are ideally suited for inductrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacle supplied with a solder-up for wire connecting or with PCB panel solder contacts. A field attachable/mountable connector is also available.
Specification for mini circular right angle elbow plug M8 3 pins connector for Sensor
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Circular screw waterproof connectors |
| Connector size | M8 |
| Contact Gender | Pin(Male), pole(female) |
| Number of contacts | 3-8 contacts |
| Mounting Style | Elbow |
| Termination Style | Solder |
| Current Rating | 1.5-3A |
| IP Rating | IP67 |
| Application | Sensors, Actuators |
| Shell Material | (1) Connector material: Plastic PA+GF (2) M8 male to female molded cable (3) Contacts:Brass, Gold Plated (4) Cable material: PVC/TPU |
| Wire Gauge | 24-28AWG |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -25°C, +80°C |

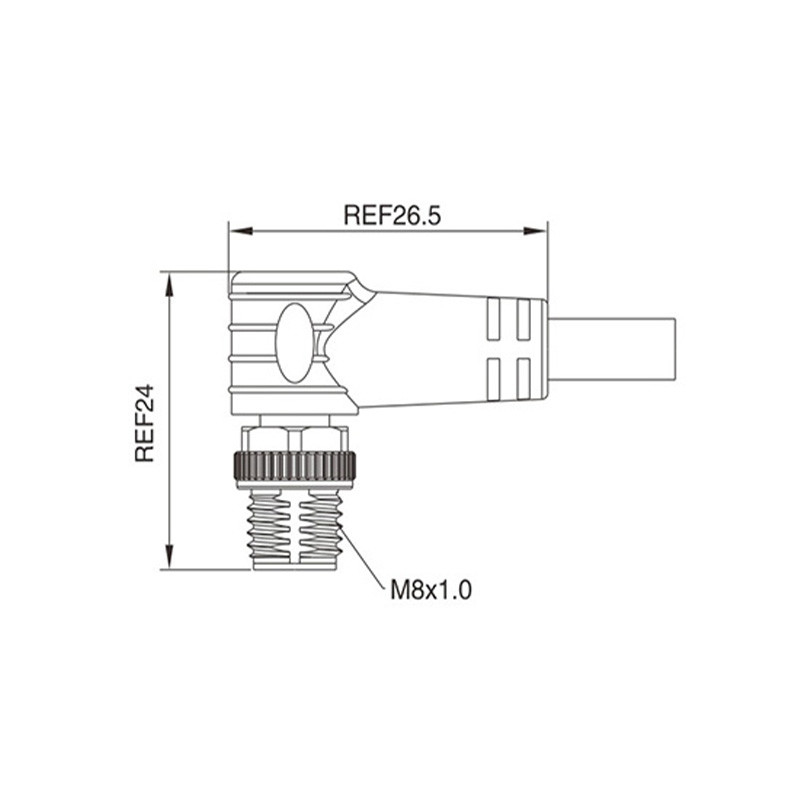

Electrical data & Mechanical data for mini circular right angle elbow plug M8 3 pins connector for Sensor
| Contacts | Rated current | Voltage | Wire gauge/size | ||
| A/C | D/C | mm2 | AWG | ||
| 3 pins | 3A | 50V | 60V | 0.25 | 24 |
| 4 pins | 3A | 50V | 60V | 0.25 | 24 |
| 5 pins | 3A | 30V | 30V | 0.25 | 24 |
| 6 pins | 1.5A | 30V | 30V | 0.14 | 26 |
| 8 pins | 1.5A | 30V | 30V | 0.14 | 26 |
Features for mini circular right angle elbow plug M8 3 pins connector for Sensor
Application for mini circular right angle elbow plug M8 3 pins connector for Sensor
RAYMO connectors have been widely used in the areas of telecommunication, electronics, medical equipments, aviation, audio-video, petroleum, motor and power industries, electrical signal connection, IC control systems, test and measurement instruments, etc
Our advantage for mini circular right angle elbow plug M8 3 pins connector for Sensor
mini circular right angle elbow plug M8 3 pins connector for Sensor
