| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| Số mô hình: | RM-M8-8 |
| Số lượng đặt hàng tối thiểu: | 1Piece |
| Giá bán: | negotiable |
| chi tiết đóng gói: | 100 cái/thùng |
| Thời gian giao hàng: | 5-8 ngày làm việc |
| Điều khoản thanh toán: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Khả năng cung cấp: | 5000pcs/tuần |
| Tên PRCT: | Đầu nối tròn thu nhỏ | Số lượng liên hệ: | 8 chân |
|---|---|---|---|
| Loại gắn kết: | Giá treo bảng điều khiển | Phương thức chấm dứt: | Hàn/PCB |
| Liên hệ giới tính: | Nữ giới | Xếp hạng IP: | IP67 |
| Xếp hạng hiện tại: | 1.5a | Định hướng cơ thể: | Thẳng |
| Làm nổi bật: | Panel Mount Female Miniature Circular Connectors,M8 8 Pin Miniature Circular Connectors,Sensor M8 8 Pin Female Connector |
||

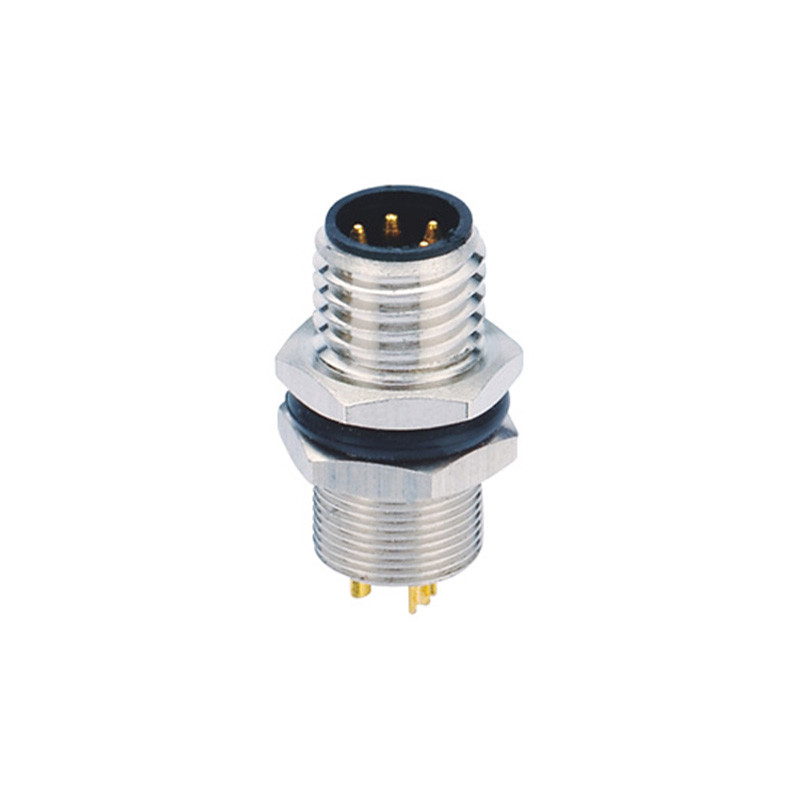

Description for panel mount sensor M8 8 pins female miniature circular connector
The M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Available in a shielded form and rated to IP67, these connectors are ideally suited for inductrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacle supplied with a solder-up for wire connecting or with PCB panel solder contacts. A field attachable/mountable connector is also available.
Specification for panel mount sensor M8 8 pins female miniature circular connector
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | miniature circular connector |
| Connector size | M8 |
| Contact Gender | pole(female) |
| Number of contacts | 8 contacts |
| Mounting Style | Panel mount |
| Termination Style | Solder/PCB |
| Current Rating | 1.5A |
| IP Rating | IP67 |
| Application | Sensors, Actuators |
| Shell Material | (1) Connector material: Plastic PA+GF (2) M8 male to female molded cable (3) Contacts:Brass, Gold Plated (4) Cable material: PVC/TPU |
| Wire Gauge | 24-28AWG |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -25°C, +80°C |

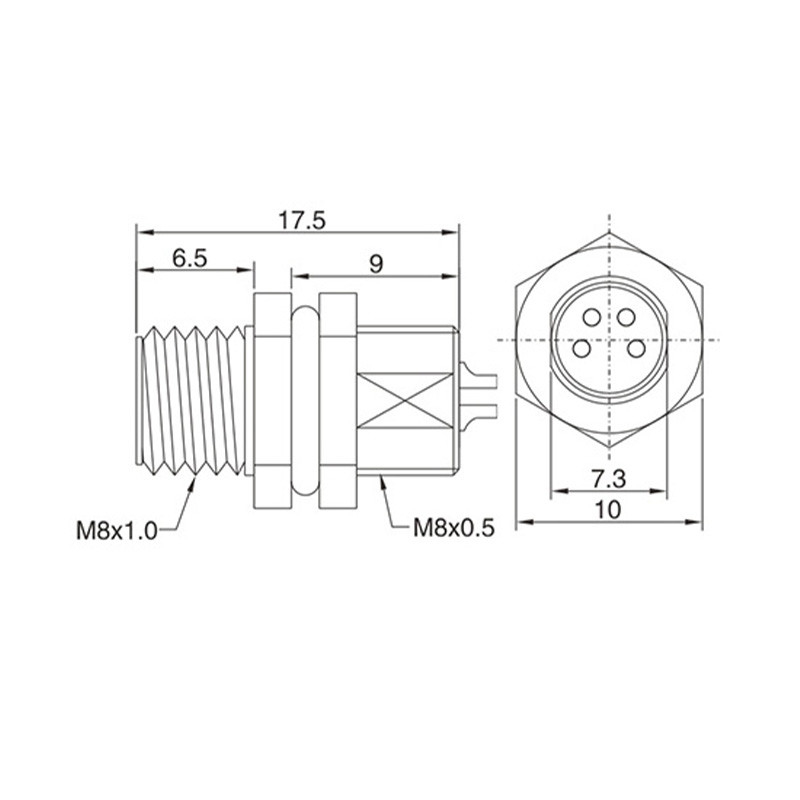

Electrical data & Mechanical data for panel mount sensor M8 8 pins female miniature circular connector
| Contacts | Rated current | Voltage | Wire gauge/size | ||
| A/C | D/C | mm2 | AWG | ||
| 3 pins | 3A | 50V | 60V | 0.25 | 24 |
| 4 pins | 3A | 50V | 60V | 0.25 | 24 |
| 5 pins | 3A | 30V | 30V | 0.25 | 24 |
| 6 pins | 1.5A | 30V | 30V | 0.14 | 26 |
| 8 pins | 1.5A | 30V | 30V | 0.14 | 26 |
Features for panel mount sensor M8 8 pins female miniature circular connector
Application for panel mount sensor M8 8 pins female miniature circular connector
With professional R&D and excellent craftsmanship, our factory has ability of providing customer with much more precision connectors and cable harness solutions to meet customer's demand in this fields.
Our advantage for panel mount sensor M8 8 pins female miniature circular connector
panel mount sensor M8 8 pins female miniature circular connector
