| Nguồn gốc: | Quảng Đông, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | CE / RoHS / SGS / ISO9001:2015 |
| Số mô hình: | PAG.M0.4GL.AC65JZ |
| Số lượng đặt hàng tối thiểu: | 1 PC |
| Giá bán: | USD3.25/PC |
| chi tiết đóng gói: | Túi & Thùng PE |
| Thời gian giao hàng: | 5-8 ngày làm việc |
| Điều khoản thanh toán: | T/t |
| Khả năng cung cấp: | 5000pc mỗi tuần |
| Đầu nối: | Đầu nối kéo nhựa | Loạt: | 1p |
|---|---|---|---|
| Liên hệ với No.: | 4 chân | khóa: | 1 khóa (g, 0 độ) |
| Xếp hạng IP: | IP50 | Vật liệu nhà ở: | PC, vỏ PSU |
| Màu nhà ở: | Màu xám | Vật liệu liên hệ: | Đồng thau mạ vàng |
| Liên hệ DIA.: | 1,3mm | người cách điện: | PPS hoặc PEEK |
| Làm nổi bật: | PSU shell Plastic Push Pull Connector,Medical Equipment Plastic Push Pull Connector,IP50 Medical Equipment Power Connector |
||

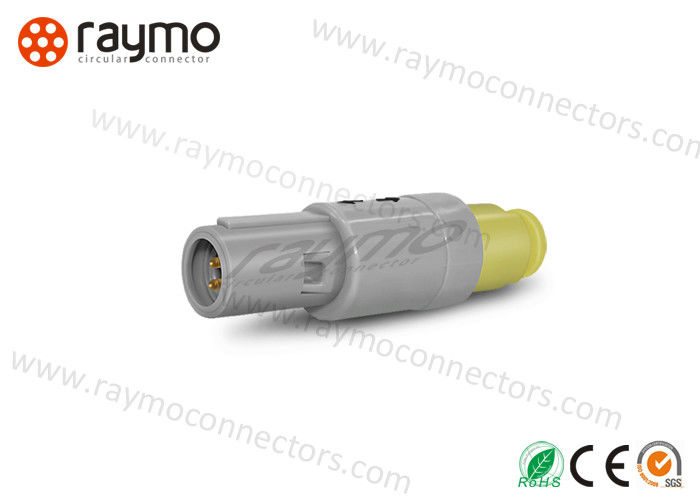

Pag 2 3 4 5 6 7 8 9 10 14 Pin Push Pull Connector Medical Equipment Power Connector Plug
RAYMO PAG YELLOW COLOUR 1P SERIES PLASTIC PUSH PULL CONNECTOR
1) Small size to accommodate cable diameter up to 6.5 mm and allow up to 14 solder contacts.
2) Lightweight and rugged materials, rapid circular push pull locking system.
3) Out shell-POLYCARBONATE (PC),Insulator-PPS,RoHS certified can be sterilized by gas or by steam.
4) The contacts are gold-plated over copper and nickel.
5) Straight and Elbow;PCB and Solder contacts.
6) At least 2000 mating/unmating cycles without significantly affecting the electrical characteristics.
7) A keying system combined with colour coding can be prevention of mismating.
RAYMO push pull connector PAG.M0.4GL.AC65JZ Prct size:
Available shell size and contacts.
|
1P |
2way, 3way, 4way, 5way, 6way, 7way,8way, 9way, 10way, 14way |
RAYMO Plastic Push Pull Connector Multiple Key:
Note: All our part numbers begin with” RM-”, for example: RM-PAG-1PC-303-JS52GZ
“52” mean the size of cable collet 5.2MM (request for cable diameter).
Color options: G (Grey),N (Black),A (Blue),J (Yellow),R (Red),V (Green), B (White)
RAYMO Push Pull Connector has designed,manufactured and distributed circular plastic Push-Pull connectors; they are especially adapted for applications such as medical electronics and test & measurement.We offer a wide choice of connectors with various contact configurations,multipole contacts and fluidic connectors.In addition,a range of one time use connectors and connectors for mains power is available.The plastic connectors are available in two sizes,depending on the cable diameter.
RAYMO Plastic Push Pull Connector Industry Application:
It has 2,3,4,5,6,7,8,9,10,14 pins for your choice,which can be widely used in medical ECG equipment,detection system,test system,instrumentation,endoscopy,computer system,electronic/mixed coaxial unlimited equipment and so on.
Great rate and good quality for moderate price China 1P 1 keying plastic male plug connector. This plastic connector includes seven color nuts include black, white, green, yellow, red, gray and blue to distinguish the connection, which enables the user to have immediate visual identification showing that the connector is securely connected and powered up. The keying codes are 0/40/60/80/155/175 degree to avoid mismatching.
With a quickly enhancement our customers come from Europe, United States, Asia medical company, it is strictly demand high grad quality. RAYMO audited by SGS company and connectors certified by RoHS and CE. For more inquires be sure to never hesitate to get in touch with us!
