| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| Số mô hình: | RM-M12-S |
| Số lượng đặt hàng tối thiểu: | 1Piece |
| Giá bán: | negotiable |
| chi tiết đóng gói: | 100 cái/thùng |
| Thời gian giao hàng: | 5-8 ngày làm việc |
| Điều khoản thanh toán: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Khả năng cung cấp: | 5000pcs/tuần |
| Tên PRCT: | Đầu nối thu nhỏ M12 | Số lượng liên hệ: | 3-8 chân |
|---|---|---|---|
| Loại gắn kết: | Giá treo bảng điều khiển | Phương thức chấm dứt: | Hàn/PCB |
| Liên hệ giới tính: | nam giới | Xếp hạng IP: | IP67 |
| Xếp hạng hiện tại: | 1,5-3a | Định hướng cơ thể: | Thẳng/khuỷu tay |
| Làm nổi bật: | IP67 M12 Panel Mount Connector,Miniature M12 Panel Mount Connector,M12 Circular Waterproof Sensor Connector |
||

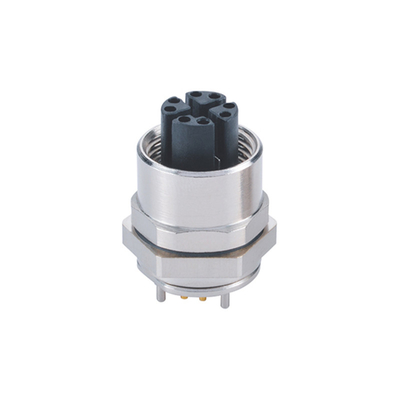

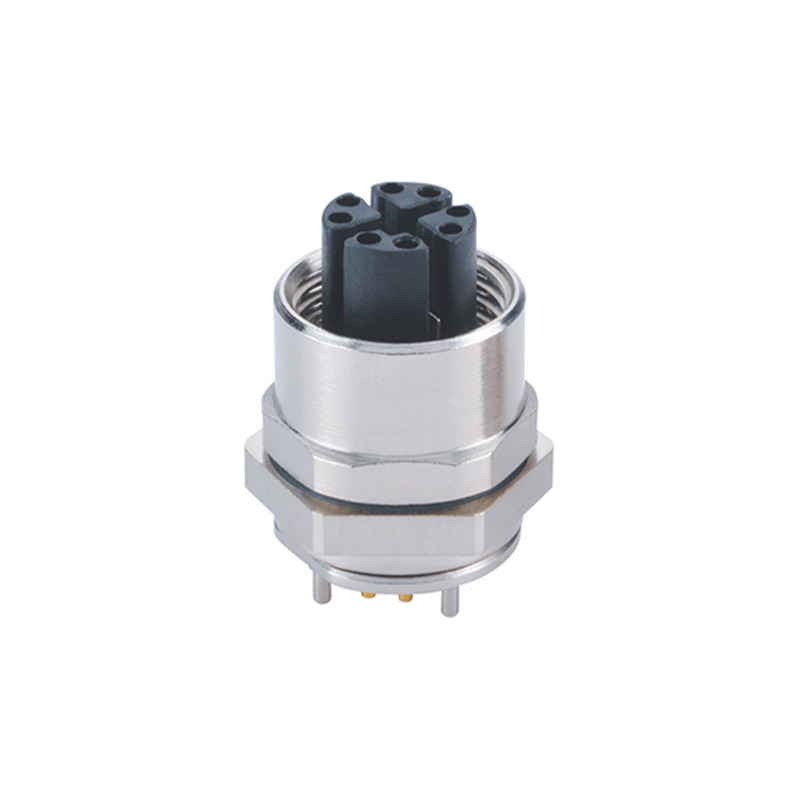

Description for panel mount m12 connector miniature circular waterproof sensor connector
Raymo M12 circular connectors facilitate the simple and cost-effective connection of signal, data and power in the automation industry. Raymo M12 series are widely used in many applications of automatio, such as sensor & actuator, CANopen, DeviceNET, Profibus, Profinet, EtherCAT, Ethernet, Interbus, CC-Link, Motor servo, Digital camera, Railway process control,,, and so on.
Specification for panel mount m12 connector miniature circular waterproof sensor connector
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Circular screw waterproof connectors |
| Connector size | M12 |
| Contact Gender | Pin(Male), pole(female) |
| Number of contacts | 8 contacts |
| Mounting Style | Straight/Elbow |
| Termination Style | Solder/print/PCB |
| Current Rating | 1.5-3A |
| IP Rating | IP67 |
| Application | Sensors, Actuators |
| Shell Material | (1) Connector material: Plastic PA+GF (2) M8 male to female molded cable (3) Contacts:Brass, Gold Plated (4) Cable material: PVC/TPU |
| Wire Gauge | 24-28AWG |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -25°C, +80°C |
Electrical data & Mechanical data for panel mount m12 connector miniature circular waterproof sensor connector
| Contacts | Rated current | Voltage | Wire gauge/size | ||
| A/C | D/C | mm2 | AWG | ||
| 3 pins | 3A | 50V | 60V | 0.25 | 24 |
| 4 pins | 3A | 50V | 60V | 0.25 | 24 |
| 5 pins | 3A | 30V | 30V | 0.25 | 24 |
| 6 pins | 1.5A | 30V | 30V | 0.14 | 26 |
| 8 pins | 1.5A | 30V | 30V | 0.14 | 26 |
Features for panel mount m12 connector miniature circular waterproof sensor connector
Application for panel mount m12 connector miniature circular waterproof sensor connector
Medical industry
Our advantage for panel mount m12 connector miniature circular waterproof sensor connector
FAQ for panel mount m12 connector miniature circular waterproof sensor connector
-What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
-What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
-What is your terms of payment?
A: T/T 100% or Alibaba on-line order are both OK.
Drawing for panel mount m12 connector miniature circular waterproof sensor connector
