| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| Số mô hình: | RM-FGG-1BC-316-JS62 = S21LFC-P16MFG0-6200 |
| Số lượng đặt hàng tối thiểu: | 1Piece |
| Giá bán: | negotiable |
| chi tiết đóng gói: | 100 cái/thùng |
| Thời gian giao hàng: | 5-8 ngày làm việc |
| Điều khoản thanh toán: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Khả năng cung cấp: | 5000pcs/tuần |
| Tên PRCT: | đầu nối đẩy kéo tròn | Số lượng liên hệ: | 16 liên hệ |
|---|---|---|---|
| Kích cỡ: | 1 | Người mẫu: | S1/S2 |
| Phương thức chấm dứt: | Hàn | Liên hệ giới tính: | nam giới |
| Xếp hạng IP: | IP50 | Màu sắc: | Đen/Bạc |
| Làm nổi bật: | Solder Circular Push Pull Connectors,16 Contacts Circular Push Pull Connectors |
||

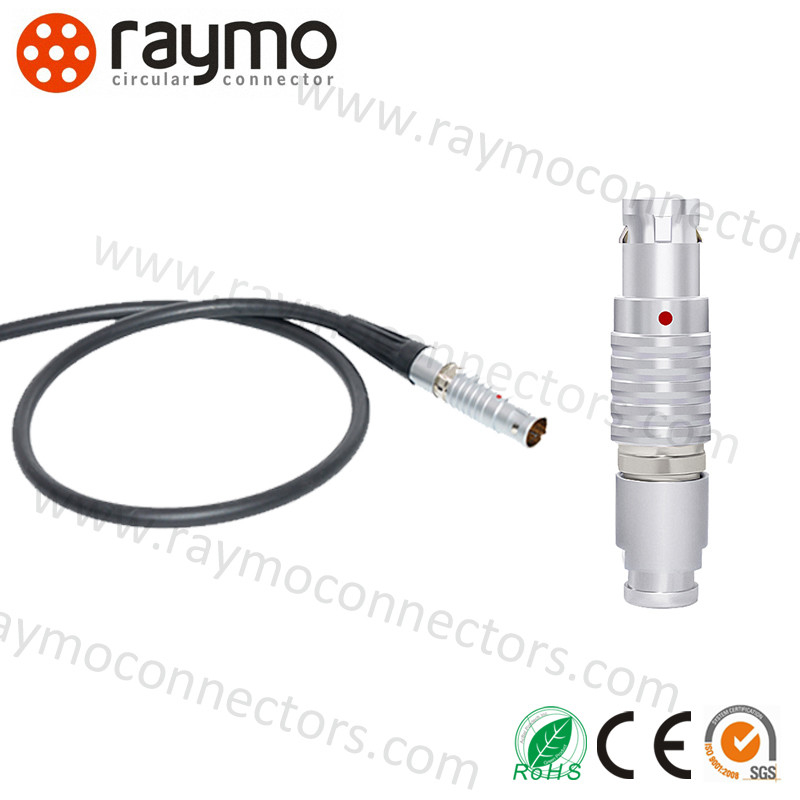

RAYMO series L S21LFC-P16MFG0-6200 Circular Push Pull Connectors
Circular Push-Pull-Connectors have a very simple locking mechanism:
- As the plug is pushed into the receptacle, locking fingers on the plug snap into the receptacle creating a reliable connection between plug and receptacle.
-Pulling on the cable or the rear of plug causes the locking fingers to grab harder and a separation of plug and receptacle is almost impossible. Pulling on the outer plug housing causes the locking fingers to retract and the plug and receptacle separate easily.
Techinical characteristics for RM-FGG-1BC-316-JS62 Circular Push Pull Connector
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Circular push pull connector |
| Connector type | Cable mount plug |
| Contact Gender | Male |
| Number of contacts | 16 contact |
| Mounting Style | Cable mount |
| Termination Style | Solder |
| Current Rating | 1.5A |
| IP Rating | IP50 |
| Series | 1B |
| Shell Plating | Chrome |
| Shell Material | Metal |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -55°C, +250°C |
| Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt spray corrosion test | >96hrs |
| Climatical Category | 50/175/21 |
| Humidity | Up to 95% at 60°C |
Microsoft Word.docx
The Advantages of Circular Push-Pull-Connectors:
- Quick and easy mating and demating
- Quick and easy seperating
- With easy operating push-pull self-locking system
- High pin density contributing to equipment miniaturization
- Shell size from 00B to 3B
- Contacts from 2-30pins
- Alignment Key and Polarized Keying System to avoid cross-interface
- 360° EMC shielding
Important Applications for Circular Push-Pull Connectors:
It is widely used on all kinds of medical equipment's, specially for the signal transmission, Medical Equipment ,Audio / Video, Test and Measurement, Communications prct line. Some of the most common areas are:
-Medical Electronics
- Test and Laboratory
- Measurement Instrumentation
-Data and Telecom Systems
- Audio and Video Applications
- Military and Aerospace
- Industrial Controls
- Nuclear Technology
Our advantage
- Original manufacturer
- Excellent R&D team
- 10+ years experience
- OEM & ODM acceptable
- 100% quality tested
- 100% fast delivery
- 100% after-sales service
Drawing for series B FGG straight plug Circular Push Pull Connector
