| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | RoHs2.0, CE, ISO9001:2015, SGS, Reach |
| Số mô hình: | Đầu nối M12 |
| Số lượng đặt hàng tối thiểu: | 1 miếng/miếng |
| Giá bán: | negotiable |
| chi tiết đóng gói: | Túi nhựa & thùng carton |
| Thời gian giao hàng: | 5-7 ngày làm việc |
| Điều khoản thanh toán: | T/T, D/A, D/P, L/C, Moneygram, Western Union |
| Khả năng cung cấp: | 5000 Miếng/ Tuần |
| Tên PRCT: | Đầu nối tròn M12 | Hệ thống khóa đầu nối:: | khóa vít |
|---|---|---|---|
| Liên hệ với No.: | 3Pins, 4pins, 5pins, 8pins, 12pins có sẵn | người cách điện: | PBT |
| Vật liệu vỏ: | Đồng thau trong nick được mạ | Mức độ bảo vệ: | IP40 |
| vận hành cơ khí: | > 500 chu kỳ giao phối | Số thuế quan: | 85369010 |
| Làm nổi bật: | Screw Locking M12 Circular Connector,Wire Harness M12 Circular Connector,PBT Insulator M12 Connector |
||
M12 circular connectors facilitate the simple and cost effective connection of signal, data and power in the automation industry. Raymo M12 series are widely used in many applications of automation, such as sensor& actuator, CANopen, DeviceNET,Profibus,PROFINET, EtherCAT, Ethernet, INTERBUS,CC-Link, Motor servo, Digital camera,Railway process control, and so on.

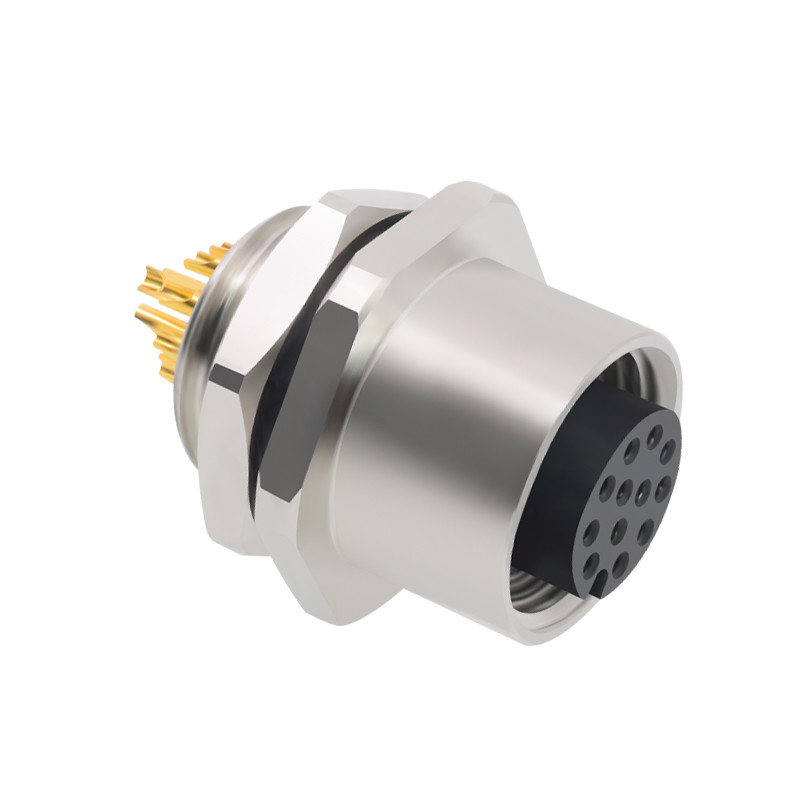

Raymo M12 PCB connectors are front and rear bulkhead mounted M12 connectors designed for easy handling on the PCB and
compatibility with wave soldering processes. M12 PCB connectors include an incorporated wire clip with an integrated PCB retention
feature to secure it in the PCB during the reflow process, individual wires come stripped and pre-tinned ready for soldering.
|
General features: |
|
|
Standard |
IEC 61076-2-101 |
|
Termination |
Solder PCB |
|
Connector locking system |
Screw |
|
Degree of protection |
IP67, IP68, IP69K |
|
Ambient temperature(operation) |
-25°C~+85°C |
|
Mechanical operation |
>100 mating cycles |
|
Customs tariff number |
8538900000 |
|
Environmental compliance |
RoHs, Reach |
|
Electrical parameters: |
|
|
Rated voltage |
30V~250V |
|
Rated impulse voltage |
500V |
|
Rated current(40°C) |
1.5A~4A |
|
Contact resistance |
≤5mΩ |
|
Insulation resistance |
≥100MΩ |
|
Materials: |
|
|
Connector body |
TPU |
|
Male pin |
Brass with gold plated |
|
Female pin |
Phosphorus copper with gold plated |
|
Shell |
Brass with nickel plated |
|
O-ring material |
Fluorine ring |
|
Black glue |
Epoxy resin |
With excellent EMI shielding and an environmental protection rating of IP67 when mated, this robust M12 Screw locking compliant with DIN EN 61076-2-106 connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers.
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military
