| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | RoHs2.0, CE, ISO9001:2015, SGS, Reach |
| Số mô hình: | Đầu nối M12 |
| Số lượng đặt hàng tối thiểu: | 1 miếng/miếng |
| Giá bán: | negotiable |
| chi tiết đóng gói: | Túi nhựa & thùng carton |
| Thời gian giao hàng: | 5-7 ngày làm việc |
| Điều khoản thanh toán: | T/T, D/A, D/P, L/C, Moneygram, Western Union |
| Khả năng cung cấp: | 5000 Miếng/ Tuần |
| Tên PRCT: | Bộ kết nối chống nước M12 | Hệ thống khóa đầu nối:: | khóa vít |
|---|---|---|---|
| Liên hệ với No.: | 3Pins, 4pins, 5pins, 8pins, 12pins có sẵn | người cách điện: | PBT |
| Vật liệu vỏ: | Đồng thau trong nick được mạ | ứng dụng: | Tự động hóa công nghiệp/ô tô |
| Mức độ bảo vệ: | IP 67 | vận hành cơ khí: | > 500 chu kỳ giao phối |
| Số thuế quan: | 85369010 | ||
| Làm nổi bật: | Female M12 Cable Connector,Straight Shielded M12 Cable Connector,Waterproof M12 Cable Connector |
||

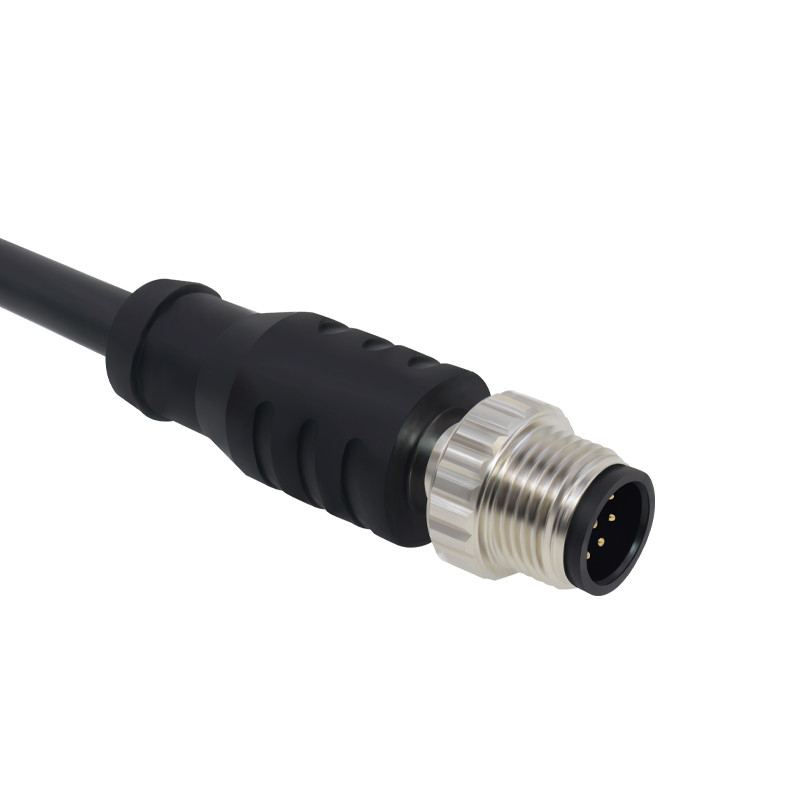

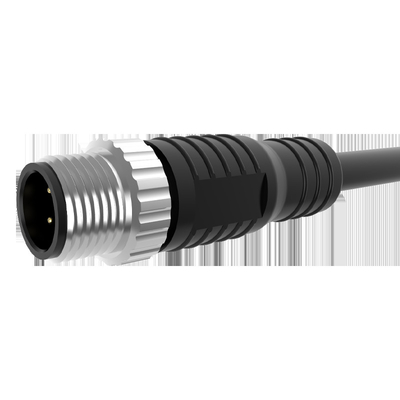

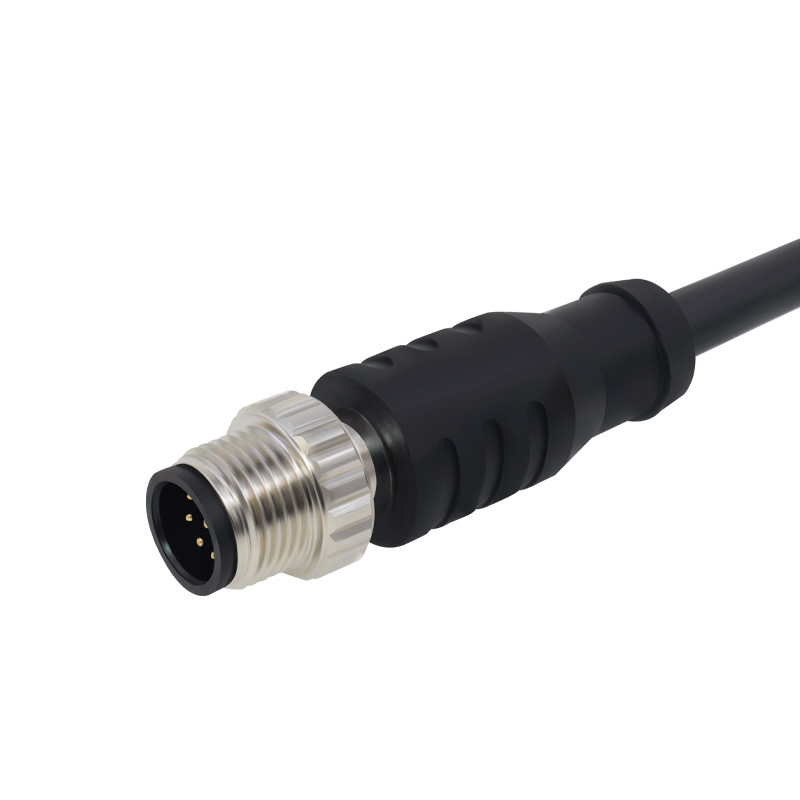

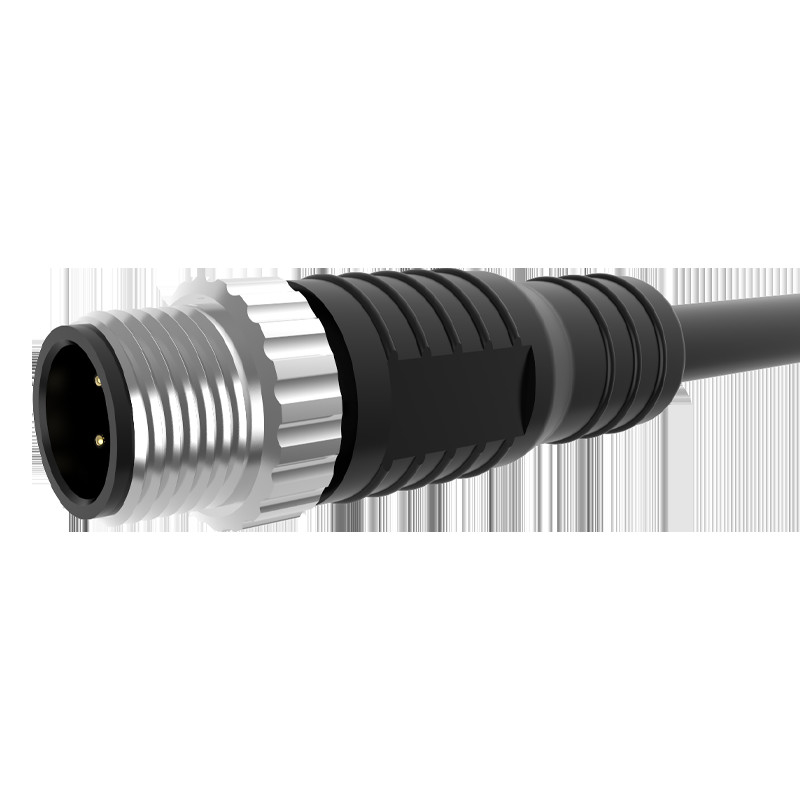

M12 circular connectors facilitate the simple and cost effective connection of signal, data and power in the automation industry. Raymo M12 series are widely used in many applications of automation, such as sensor& actuator, CANopen, DeviceNET,Profibus,PROFINET, EtherCAT, Ethernet, INTERBUS,CC-Link, Motor servo, Digital camera,Railway process control, and so on.
| General Infomation | |||
|
Standard
|
IEC 61076-2-101
|
Connector Contacts
|
Brass with Gold Plated
|
|
Insulation Resistance
|
≥100MΩ
|
Connector Overmold
|
TPU
|
|
Ambient Temperature
|
-40℃~+80℃ (fixed installation)
|
Coupling Nut/Screw
|
Zinc Alloy with Nickel Plated
|
| -20℃~+80℃ (flexible installation) |
Mating Endurance
|
>500 cycles
|
|
|
Contact Resistance
|
≤5mΩ
|
IP Rating
|
IP68/IP69K in locked condition
|
|
Connector Insert
|
PA
|
Certificate
|
CE/ROHS/IP67/REACH/IP68
|
|
Shielding
|
Available
|
With excellent EMI shielding and an environmental protection rating of IP67 when mated, this robust M12 Screw locking compliant with DIN EN 61076-2-106 connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers.
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
