| Nguồn gốc: | Thâm Quyến, Quảng Đông, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | RoHS, Reach, SGS, ISO:9001-2015 |
| Số mô hình: | OHS-BC-1-19/18-P2-1-B |
| Số lượng đặt hàng tối thiểu: | 1 miếng/miếng |
| Giá bán: | 4.99-11.99USD/piece |
| chi tiết đóng gói: | Túi & Thùng PE |
| Thời gian giao hàng: | 7 ngày |
| Điều khoản thanh toán: | Western Union, T/T, Moneygram, D/P, D/A, Moneygram, L/C |
| Khả năng cung cấp: | 5000 Miếng/ Tuần |
| Tên PRCT: | Đầu nối loạt OHS của Nga | Loại kết nối: | ổ cắm |
|---|---|---|---|
| Định hướng: | Mặt bích hình vuông ẩn | Loại liên hệ: | Nam Pin |
| Tỷ lệ IP: | IP67 | đường kính liên hệ: | Ø1.0mm |
| Làm nổi bật: | Easy Installation OHS Series Connector,DC And AC Circuits Circular Connectors,OHS series Circular Connectors |
||
OHS series Connector Quick and Easy Installation Military Circular Connectors For DC And AC Circuits Description
Connectors of OHS-BC-1(2) type (plugs and receptacles) are designed for use in DC and AC circuits (up to 3 MHz) with voltage up to 250 V

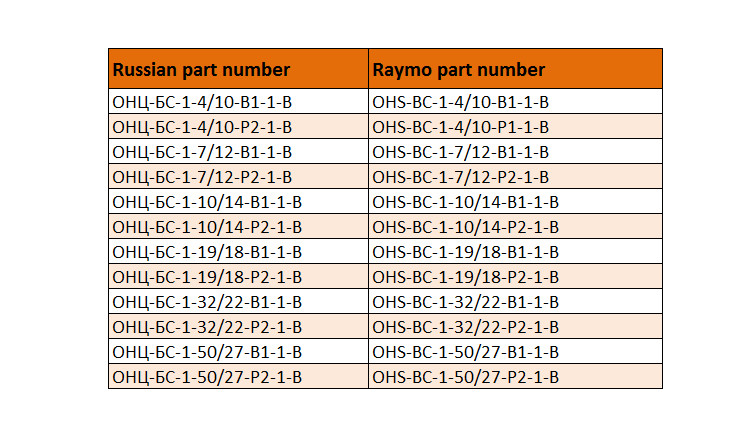

The coupling mode of the connector is bayonet type. The socket has no tail attachment and the plug has a straight plastic tail attachment. At the same time, it can be matched and interchanged with the original parts of the Russian ОНЦ-БС-1(2) series.
OHS series Connector Quick and Easy Installation Military Circular Connectors For DC And AC Circuits main features:
Compact Size: Ideal for applications where space is limited.
High Performance: Capable of handling high data rates and power levels despite its small size, making it suitable for a wide range of applications.
Durable Construction: Constructed of high-quality materials to ensure long service life, even in harsh environments.
Easy Installation: Enables quick and easy installation and disassembly, saving time and effort during assembly and maintenance.
OHS series Connector Quick and Easy Installation Military Circular Connectors For DC And AC Circuits Parameter
|
Category |
Military Circular Connectors |
|
Part number |
OHS-BC-1-7/12-B1-1-B |
|
Connector Type |
Receptacle |
|
Orientation |
Hermetic Square flange |
|
Contact Type |
Male Pin |
|
Number of Positions |
7 |
|
Fastening Type |
Threaded |
|
Mounting Type |
Panel Mount |
|
Contact Termination |
Crimp |
|
Protection Rating |
IP67 |
OHS series Connector Quick and Easy Installation Military Circular Connectors For DC And AC Circuits tecnical performance
|
Contact resistance |
≤5mΩ |
|
Insulation resistance |
≥1000MΩ(in normal situation) |
|
Ambient temperature |
’-60℃~85℃ |
|
Vibration |
1-5000HZ 20g |
|
Shocking |
once 1000g, repeatedly 100g |
|
Contact diameter |
ø1.0mm |
|
Mechanical life |
250times |
|
Working time |
5000hours |

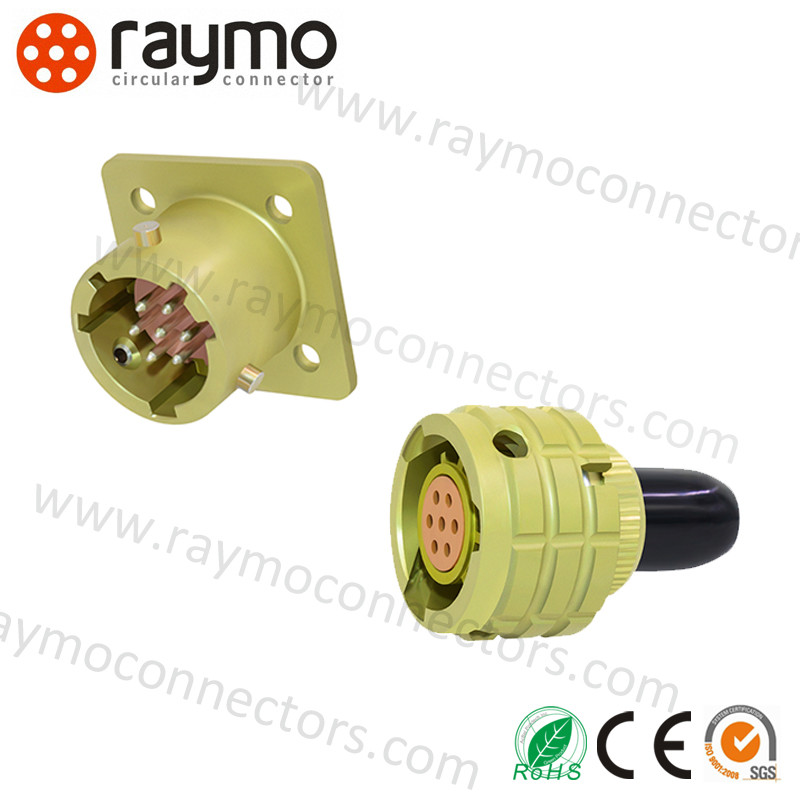

OHS series Connector Quick and Easy Installation Military Circular Connectors For DC And AC Circuits pictures
OHS series Connector Quick and Easy Installation Military Circular Connectors For DC And AC Circuits Application
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military
