| Hàng hiệu: | Raymo |
|---|---|
| Chứng nhận: | CE/RoHs/REACH/ISO9001:2015 |
| Số mô hình: | MDM-9PS |
| Tài liệu: | J30J Miniature Rectangular ...es.pdf |
| Minimum Order Quantity: | 1 Piece |
| Giá bán: | 5-15 USD |
| Packaging Details: | CTN |
| Delivery Time: | 3-4 Weeks |
| Điều khoản thanh toán: | T/T, D/A, D/P, Liên minh phương Tây, Moneygram |
| Supply Ability: | 5000PCS Per Month |
| Ứng dụng: | Thiết bị điện tử | Chiều dài cáp: | Theo yêu cầu |
|---|---|---|---|
| Chiều dài dây: | 50cm, 500mm | chu kỳ giao phối: | 500 lần |
| Ghim liên hệ: | 9 chân | Kiểu: | Đầu nối |
| Khoảng cách lưới: | 2,54 × 2,54 | chịu được điện áp: | 500VAC |
| Làm nổi bật: | J30J series 9-pin connector,500VAC 2.54mm grid connector,J30J series electrical connector |
||
| Attribute | Value |
|---|---|
| Application | Electronic Equipment |
| Cable Length | As Require |
| Wire Length | 50cm, 500mm |
| Mating Cycle | 500 Times |
| Contact Pin | 9 Pins |
| Type | Connector |
| Grid Distance | 2.54×2.54 |
| Withstanding Voltage | 500VAC |
The J30J series connector is a versatile and high-quality product designed for electronic equipment applications. With a voltage rating of 250V, this connector ensures reliable and safe connectivity for various devices.
Featuring 9 contact pins, the J30J series connector provides a secure and efficient connection for your electronic components. Its compact micro-miniature design makes it suitable for space-constrained applications in portable electronic devices.
The connector is compatible with ITT Cannon MDM Series connectors, ensuring easy integration into existing systems. Cable length can be customized to meet specific installation requirements.
| Parameter | Value |
|---|---|
| Mating Cycle | 500 Times |
| Leak Rate | ≤1.01X10^-3 Pa.cm^3/s |
| Mating Cable | AFR-250, White Wire 0.1~0.15mm2 |
| Grid Distance | 2.54*2.54 |

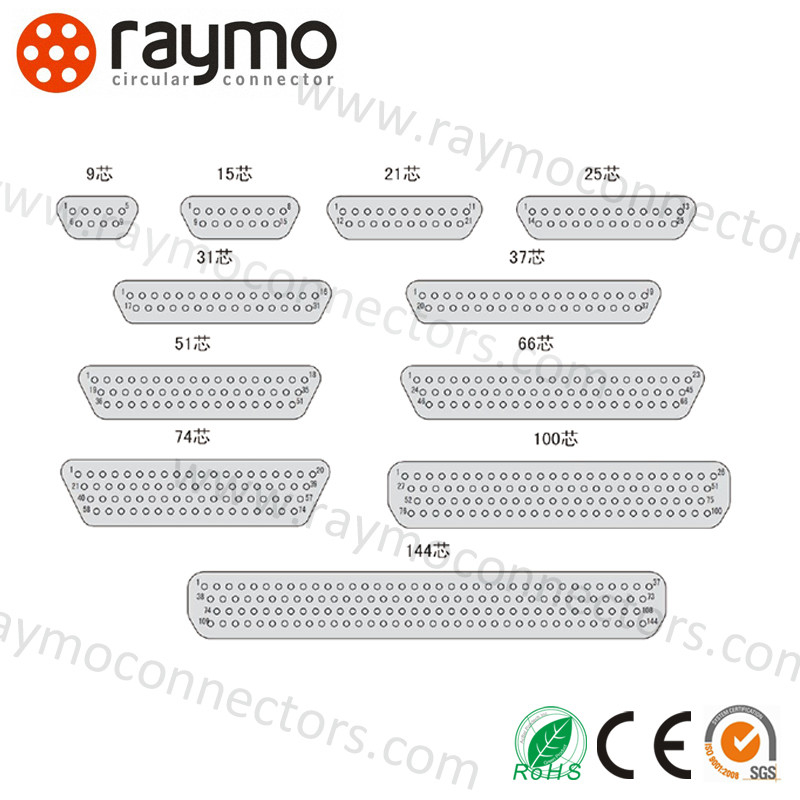

| Available Pins | 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 |
| Type | Connector |
| Temperature Range | -55～+125 ℃ |
| Withstanding Voltage | 500VAC |
| Voltage Rating | 250V |
| Center Conductor | Copper Alloy, Gold Plating |
The Raymo RM-J30J series connector is designed for various applications in the electronic equipment industry. Its miniature rectangular connector design with micro twist pin contact technology makes it suitable for both small-scale and large-scale projects.
Certified with CE, RoHs, REACH, and ISO9001:2015 standards, this connector meets international quality requirements. Available with flexible wire length options (50cm and 500mm) and durable 500-cycle mating capability.
Comprehensive technical support is available for installation, troubleshooting, and product-related queries to ensure optimal performance and customer satisfaction.
