| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | Raymo |
| Số mô hình: | RM-KSE-1F1C-P14K |
| Số lượng đặt hàng tối thiểu: | 1 miếng/miếng |
| Giá bán: | negotiable |
| chi tiết đóng gói: | Túi & Thùng PE |
| Khả năng cung cấp: | 50000 Piece / Pieces mỗi tháng |
| Kiểu: | Din | ứng dụng: | UHF |
|---|---|---|---|
| Giới tính: | Nam nữ | Decription PRCT: | KSE SEAD SEALED CAPEPTACLE |
| Kích cỡ vỏ: | 1031 (102, 103, 104 Series) | Liên hệ với No.: | 14pin (2, 3, 4, 5, 6 ... 19pin có sẵn) |
| khóa: | Mã khóa 1 (Mã 2, 3 có sẵn) | Vật liệu liên hệ: | Đồng thau mạ vàng |
| người cách điện: | PPS | Vật liệu vỏ ngoài: | Chrome chen đồng |
| Xếp hạng IP: | IP68 | Giấy chứng nhận: | CE, ROHS, SGS, Reach, ISO9001: 2015 |
| Nhà sản xuất: | Đúng | Cổng: | Cảng Thâm Quyến |
| Làm nổi bật: | waterproof wire connectors,waterproof cable connector |
||
P/N: RM-KSE-1F1S-P14KS67

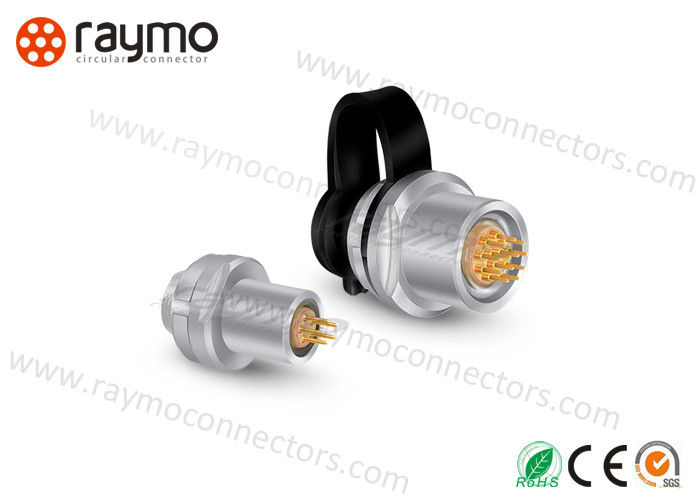

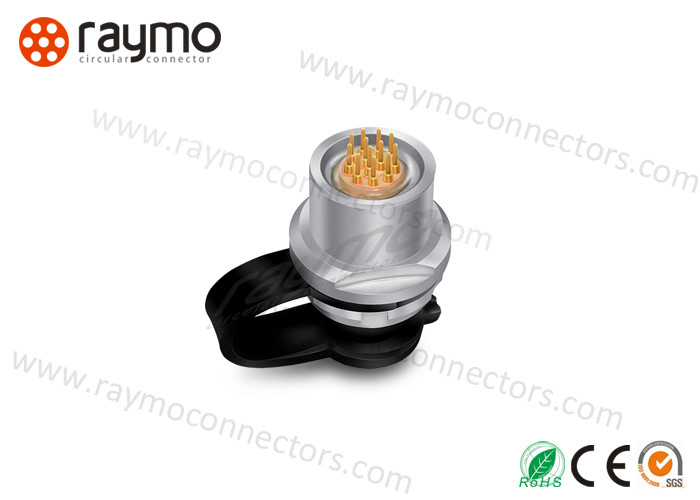

Description: KSE short sealed cable receptacle, 103/1F series, 14pin female contacts, in solder type, keying code 1, PPS insulator, outer shell in black/natural chrome plated brass, 67 cable collet for 6.2-6.7mm cable, round nut
– Easy mating, can be blind-mated
– Increased safety and user friendliness
– Convenient grip even with gloves
– Increased equipment life span
– Robust and shock resistant designs
– Compact and lightweight construction
– High pin density and hybrid contacts
– High performance connectors
– Sealed up to IP68 and corrosion resistant
– Sterilizable
|
Series
|
Contacts No. with solder & PCB type
|
|
0F/102
|
2 3 4 5 7 9
|
|
1F/103
|
2 3 4 5 6 7 8 10 12 14 16
|
|
AF/1031
|
10 12 15 19
|
|
2F/104
|
2 3 4 6 8 16 19
|
|
3F/105
|
7
|
1~10pcs: 3~5 working days
11~100pcs: 5~7 working days
101~500pcs: 7~10 working days
501~1000pcs: 10~15 working days
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement Equipment, Data Acquisition, Data Transfer Equipment, Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing circular push-pull connectors and cable assembly since 2010. We are SGS audited manufacturer, passed ISO9001:2015 Quality management system, and worked on www.alibaba.com as a golden supplier more than 4 years. All the prcts meet CE & ROHS standards.
2. What is the MOQ?
Raymo: No MOQ limited, depend on customer real needs.
3. Free sample:
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: 3-5 working days for samples, 5-7 working days for mass prction.
5.What is your payment terms?
Raymo: 100% T/T in advance when customer place an order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating, our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
