| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | ISO9000:2015/ CE/ ROHS/ SGS/ REACH |
| Số mô hình: | SS-0F1C-P02JS50 |
| Số lượng đặt hàng tối thiểu: | 5Piece/mảnh |
| Giá bán: | negotiable |
| chi tiết đóng gói: | Túi nhựa & thùng carton |
| Thời gian giao hàng: | 5-7WDS |
| Điều khoản thanh toán: | Liên minh phương Tây, L/C, D/A, D/P, T/T |
| Khả năng cung cấp: | 5000 Miếng/ Tuần |
| Kiểu: | Đầu nối kéo tròn của Fischer | Mô hình vỏ: | SS Cáp ngắn gắn kết gắn |
|---|---|---|---|
| Kích cỡ vỏ: | 0F/102 | Liên hệ với No.: | 2,3,4,5,7,9pins |
| Màu sắc: | Crôm tự nhiên / đen | Kết nối loại: | Liên hệ hàn với chất cách điện PPS/PEEK |
| ứng dụng: | Âm thanh & video | Xếp hạng IP: | IP68 |
| Làm nổi bật: | waterproof wire connectors,waterproof electrical connectors |
||
S SS 102 103 1031 104 cable IP68 waterproof connectors,Fischer connector,2pins SS 102 A051 130+
Parts No.:RM-SS-0F1C-P03JS50= SS 102 A051 130+

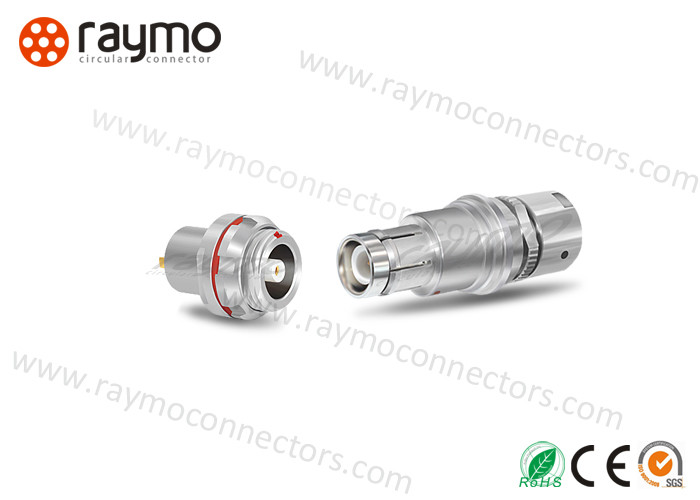

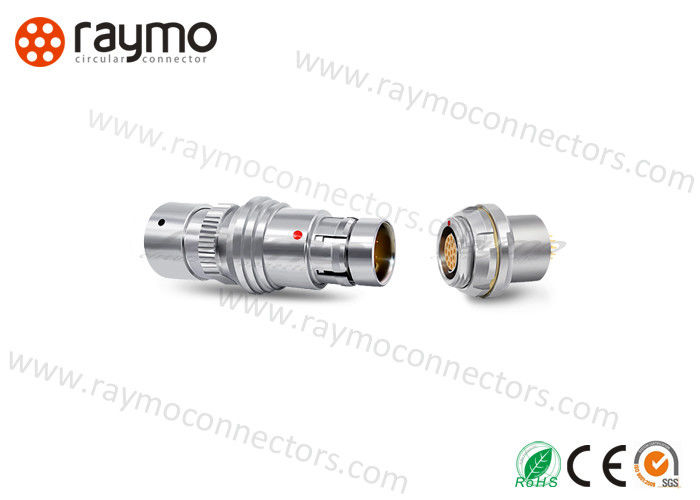

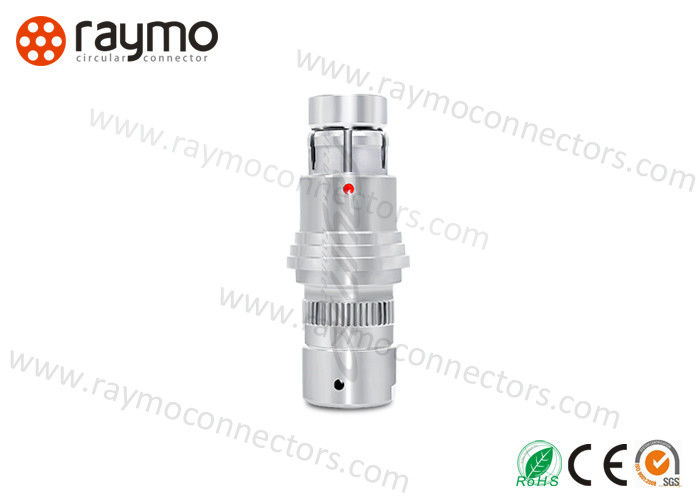

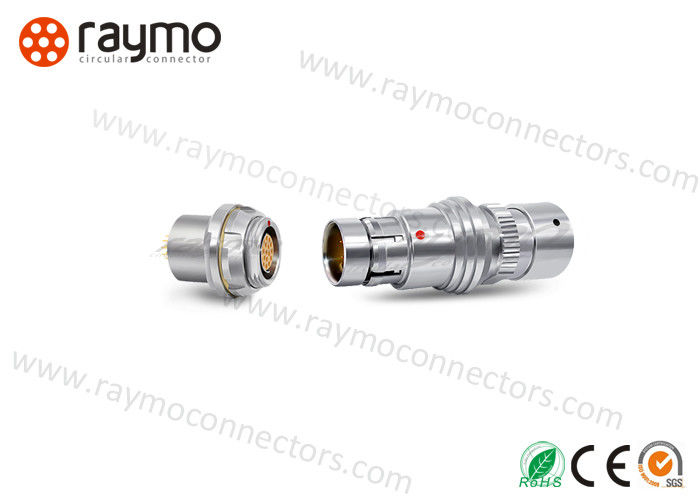

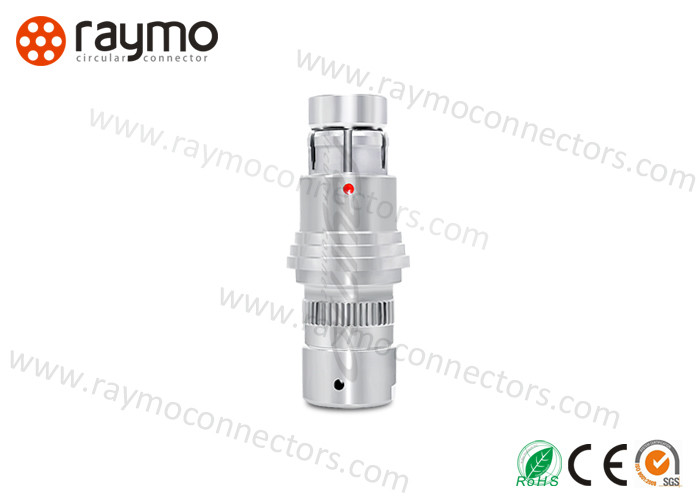

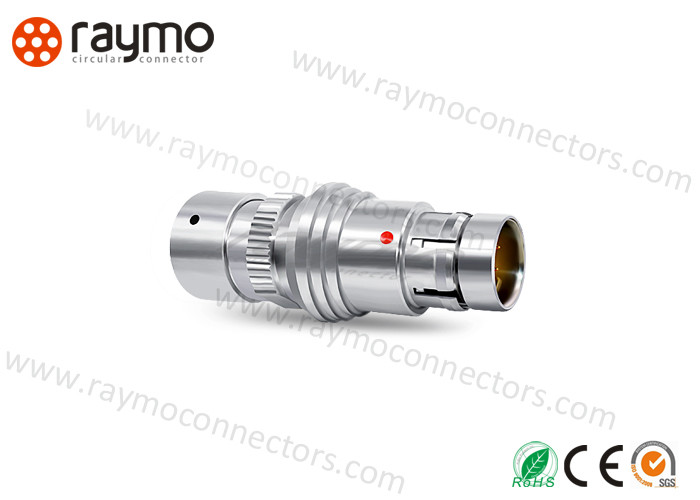

Description:Compatible Fischer SS 102 2 Pin Circular Connector, male plug,solder type, natural chrome plated brass , 50 cable collet
| Features | |
| 1 | 100% substitute with original Fischer |
| 2 | different shell size is available from 102,103,1031 and 104 |
| 3 | Sealed to IP68 and Hermetic |
| 4 | 360° EMC shield |
| 5 | Available Solder,PCB or right angle PCB contacts |
| 6 | Robust and shock resistant designs |
RAYMO is a manufacturer that:
♣ Manufacturing & exporting various metal & plastic circular connectors and cable assembly
♣ All prcts can be 100% compatible with original LEMO • FISCHER • • HIROSE • BINDERS and Military 38999
♣ Cable Assembly can be designed according customer real needs
♣ All the prcts we got CE, ROHS, SGS,ISO9000 certificate
♣ OEM connector and Cable assembly
• All the items can work normally after 5000 times mating
We can make all types of cables and connectors as per customers' request. Use any kind of connectors, like Hirose, Cannon, BNC, TNC, D-sub, USB, RJ45, Dtap, JST, Molex, and so on. Just tell us your need, leave the rest to RAYMO
| Technical Characteristics | |||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz] > 40 dB [ at 1 GHz] |
| IP Rating | IP 68 | Certifications | ISO9001 CE ROHS2.0 SGS |
Why choose us:
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
