| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | REACH, SGS, RoHS2.0, ISO:9001-2015, CE |
| Số mô hình: | EEG.1B.307.Clv |
| Số lượng đặt hàng tối thiểu: | 5 cái/cái |
| Giá bán: | negotiable |
| chi tiết đóng gói: | Túi nhựa & thùng carton |
| Thời gian giao hàng: | 5-7WDS |
| Điều khoản thanh toán: | Liên minh phương Tây, L/C, D/A, D/P, T/T |
| Khả năng cung cấp: | 5000 Miếng/ Tuần |
| Kiểu: | Đầu nối mạch in PCB | Kích cỡ vỏ: | 0b, 1b, 2b, 3b, 4b |
|---|---|---|---|
| Liên lạc: | 2 đến 32 chân | Giới tính: | Danh bạ pcb khuỷu tay nữ |
| người cách điện: | PPS, Peek có sẵn | Xếp hạng IP: | IP50 |
| Làm nổi bật: | circuit board connectors,pcb board connector |
||
Lemos B series EEG EGG ECG printed Circuit Connectors, 0B to 4B with 2 to 32 ways elbow signal connector

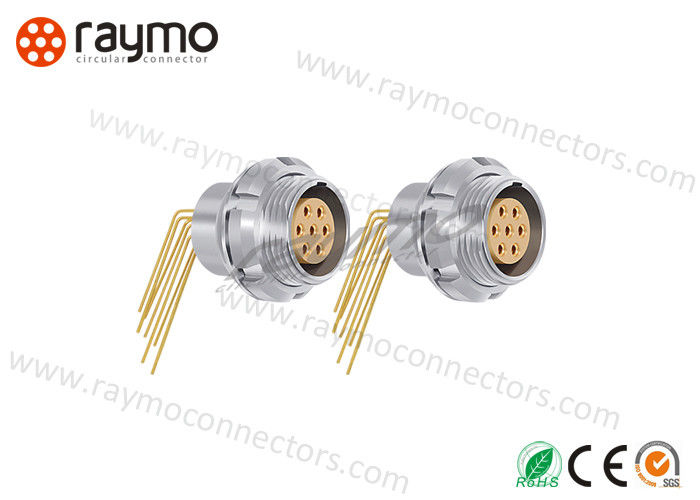

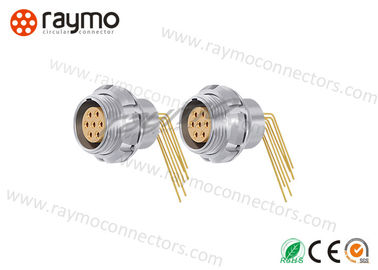

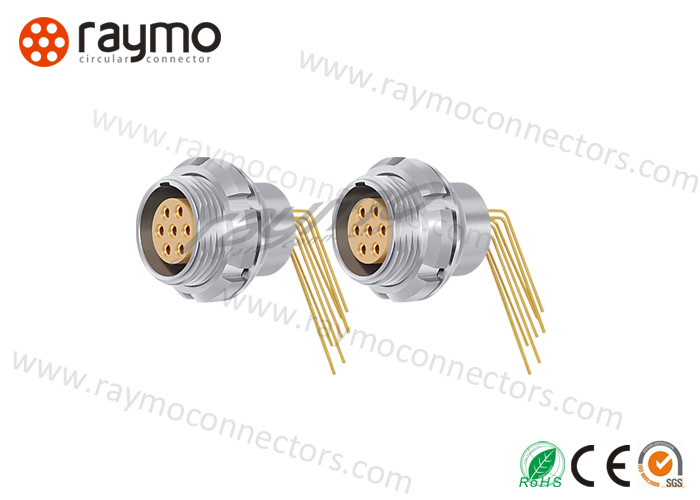

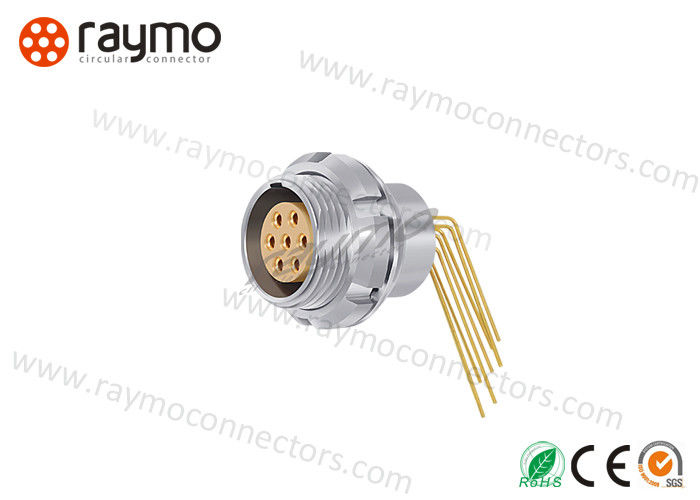

1B 7 pins Elbow PCB contacts
Straight PCB, solder and elbow PCB contacts are available too
|
RAYMO P/N |
Lemo P/N |
P/N |
|
RM-EGG-1BC-307-KV |
EGG.0B.307.CLV |
G20L0C-P02 |
| Shell size | Contacts no. ( Both with Solder & PCB type ) | ||||||||||||||
| 00 | 2 | 3 | 4 | ||||||||||||
| 0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | ||||||||
| 1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||||
| 2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | |||
| 3B | 3 | 4 | 6 | 8/(6+2) | 9(8+1) | 10 | 12 | 14(13+1) | 14 | 16 | 18 | 21 | 26 | 30 | 32 |
| 4B | 7 | 10 | 24 | |
|||||||||||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP50 | Endurance(shell) | 5000 mating cycles |
| 1.Can I order a small list ? |
| Raymo:Of course, you can. |
| 2.What quote do you offer? |
| Raymo:FOB , CIF and others ways according the your needs. |
| 3.How transport? |
| Raymo:Sea Freight, Air Freight and others Express Delivery ways for you. |
| 4.What is the quality of your prcts guarantee? |
| We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free. |
| 5.Do you have after-sales service? |
| Raymo:Certainly,you can contact us at any time. |
