| Nguồn gốc: | Thâm Quyến, Trung Quốc |
|---|---|
| Hàng hiệu: | RAYMO |
| Chứng nhận: | CE/ ISO9000:2015/ ROHS/ SGS/ REACH |
| Số mô hình: | S20LP09 |
| Số lượng đặt hàng tối thiểu: | 5Piece/mảnh |
| Giá bán: | negotiable |
| chi tiết đóng gói: | Túi nhựa & thùng carton |
| Thời gian giao hàng: | 5-7WDS |
| Điều khoản thanh toán: | Liên minh phương Tây, L/C, D/A, D/P, T/T |
| Khả năng cung cấp: | 5000 Miếng/ Tuần |
| Mô hình vỏ: | Đầu nối tròn chống thấm nước | Kích cỡ vỏ: | 3 kích thước khác nhau |
|---|---|---|---|
| Liên hệ với No.: | 2 pin đến 16 pin | Kết nối loại: | Liên hệ hàn với chất cách điện PPS/PEEK |
| ứng dụng: | Các hãng phim và phát sóng bên ngoài | MOQ: | 1pcs |
| Làm nổi bật: | PEEK Brass Signal Connector,IP50 Brass Signal Connector,s L Waterproof Cord Connector |
||
s L series straight plug brass shell signal connector circular warterproof connector
Raymo FS2 can alternative with WSO 102 FISCHER connector. Works from 2 to 19 pins. Better quality with a reasonable price and short lead time. Raymo provide cable connection solution.We can make all types of cables and connectors as per customers' request. Use any kind of connectors, like Hirose, Cannon, BNC, TNC, D-dtap, D-Sub, USB-A, USB-B, RJ45, JST, Molex, and so on. Just tell us your need, leave the rest to RAYMO.
1. Brief intrction
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED as a professional in design and manufacture all kinds of connectors and special cables, have accumulated rich experience in development and prction for kinds of cables and its related connector adapter.With RED/Teradek Bond/ARRI Camera Cable, Canon / Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable... We supply different OEM/ODM services serve as different application and requirement.Connectors are compatible with Lemo,Fischer, Binder, Hirose, and 38999 etc.Our prcts are widely used in kinds of harsh environment and applications, like industrial control devices, medical equipment, measuring and inspecting equipment, audio & visual equipment and military, etc. Furthermore, it has excellent compatibility with many leading supplier.
2.Description
S2 Straight circular connector, push pull cable connectors, shell in black color. male solder contacts, 9 pins
3.Technical Characteristics
| Temperature Range | - 65° C, +200° C |
| Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt spray corrosion test | >96hr |
| IP Rating | IP50 |
| Life Cycles | 5000 times |
| Certifications | ISO9001 CE ROHS2.0 SGS |
4.Construction and Size

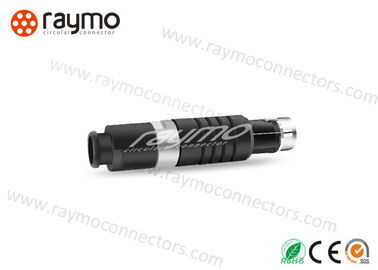

FS2 cable connectors with black color
6.Why choose us
7.DIY cable assembly process:
Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
Screw the collet nut tightly Hitch the sleeve to the corresponding step of collet nut.
